Dimensions specific to this 4.2T model
Overall width is 3,370 mm with 2,790 mm between pillars. Overall equipment height is 2,780 mm; the required building clearance depends on the raised vehicle.
Select a view below. Click the main image to open it full size.Product images illustrate the model and may use a composed workshop background. Confirm the supplied configuration, finish and accessories in your quotation.
EHRLE / VEHICLE LIFTS

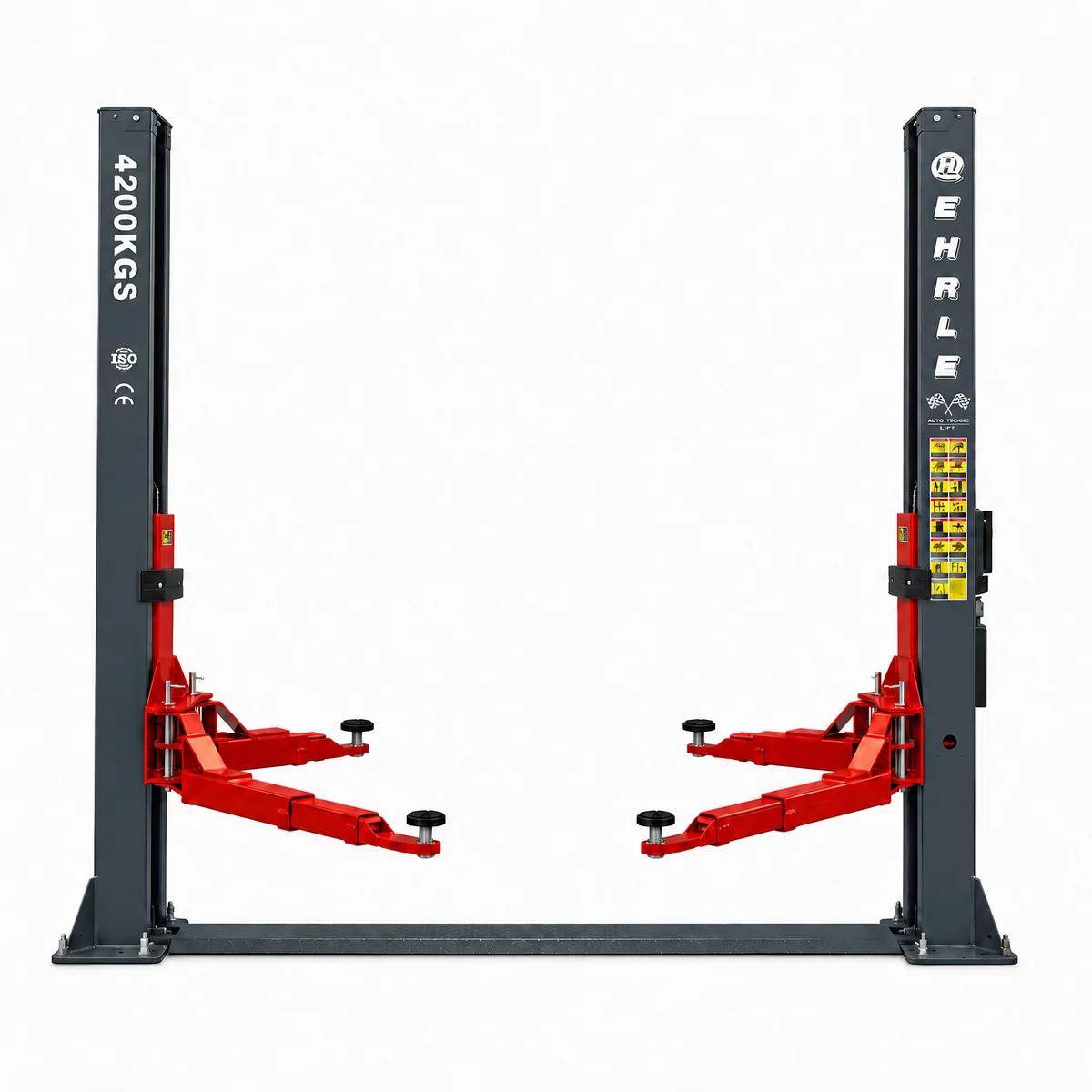

EHRLE 4200KG Two-Post Hydraulic Lift
A 4,200 kg service lift with 1,850 mm maximum lifting height and 2,790 mm spacing between pillars. Compare its 3,370 mm overall width and 120 mm minimum height with your vehicles.
- Lifting Capacity
- 4200Kg
- Weight Capacity
- 4200kg
- Max. Lifting Height
- 1850mm
Request the model drawing, electrical configuration, packing details and applicable documents with your quotation.
View all specifications ↓DESIGNED FOR THE TASK
4200KG equipment overview
Two lifts can share a 4.2T rating yet need different service-bay layouts. This 4200KG model has 2,790 mm between the pillars and a 3,370 mm overall width, so it should be assessed using its own dimensions. The 2,780 mm overall height describes the equipment; ceiling clearance must also accommodate the vehicle throughout the intended lifting travel.
The hydraulic system is rated at 4,200 kg with a listed maximum lifting height of 1,850 mm and minimum height of 120 mm. Lifting time is specified as 50 seconds or less. Pair those figures with vehicle lifting points, arm reach and load distribution when selecting the model, and use the ordered electrical configuration for installation planning.
1,850 mm listed lifting height
The lift has a 4,200 kg rating, 120 mm minimum height and 1,850 mm maximum lifting height. Vehicle lifting-point access must suit the selected arm configuration.
Hydraulic drive and voltage options
A 2.2 kW motor powers the lift, with 110 V, 220 V and 380 V order options. Listed lifting time is no more than 50 seconds.
Underbody inspection and general maintenance
Use this two-post configuration for compatible vehicles within the 4,200 kg rating whose approved lifting points and load distribution suit the arms and supports.
Bay selection where dimensions matter
Compare this model's width and column height with other 4.2T lifts before choosing a workshop position. Its equipment height alone does not establish that a low-ceiling bay is suitable.
A CLOSER LOOK
Equipment and configuration details

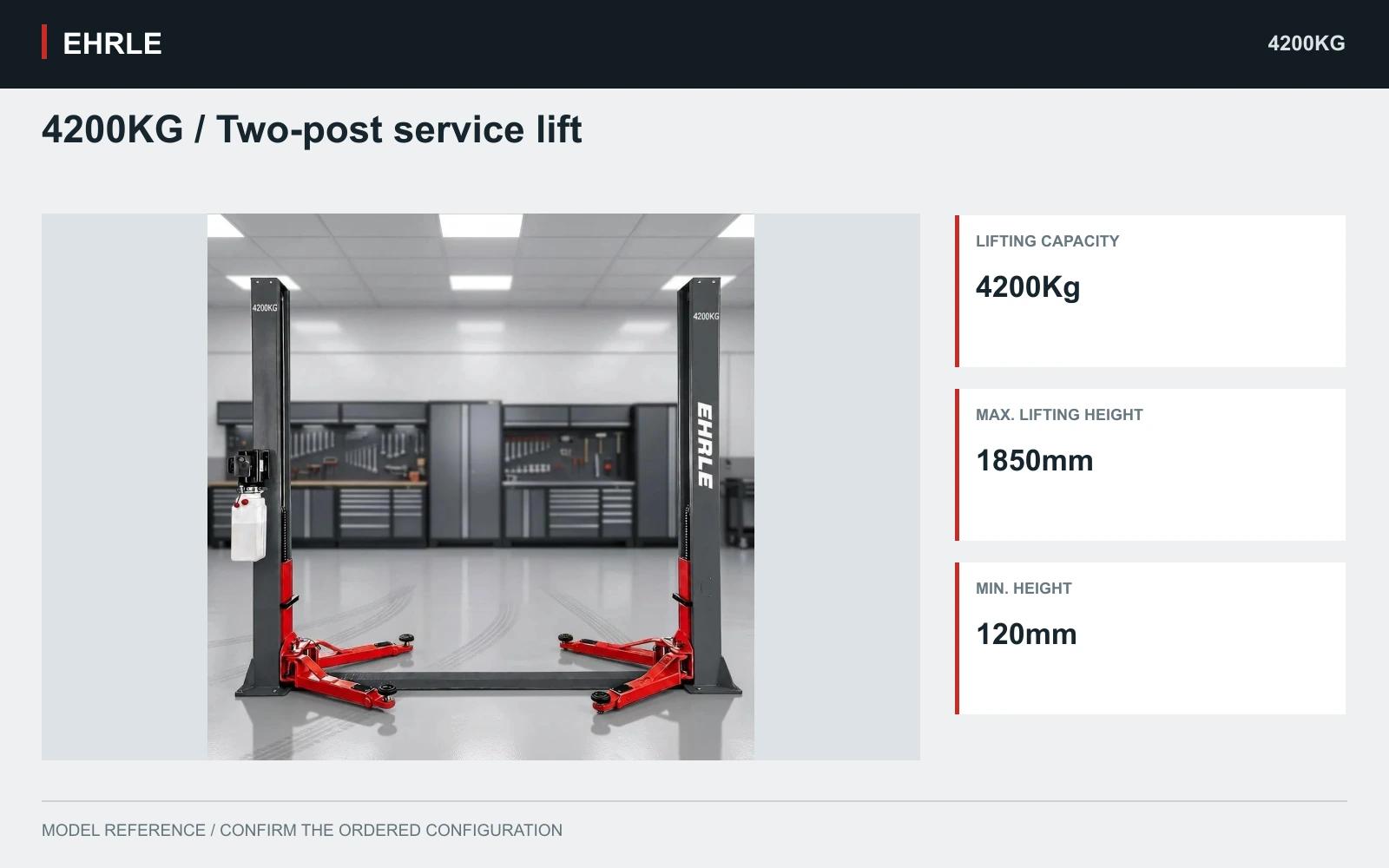

4200KG / Two-post service lift
4,200 kg rated capacity with a 2.2 kW hydraulic drive.

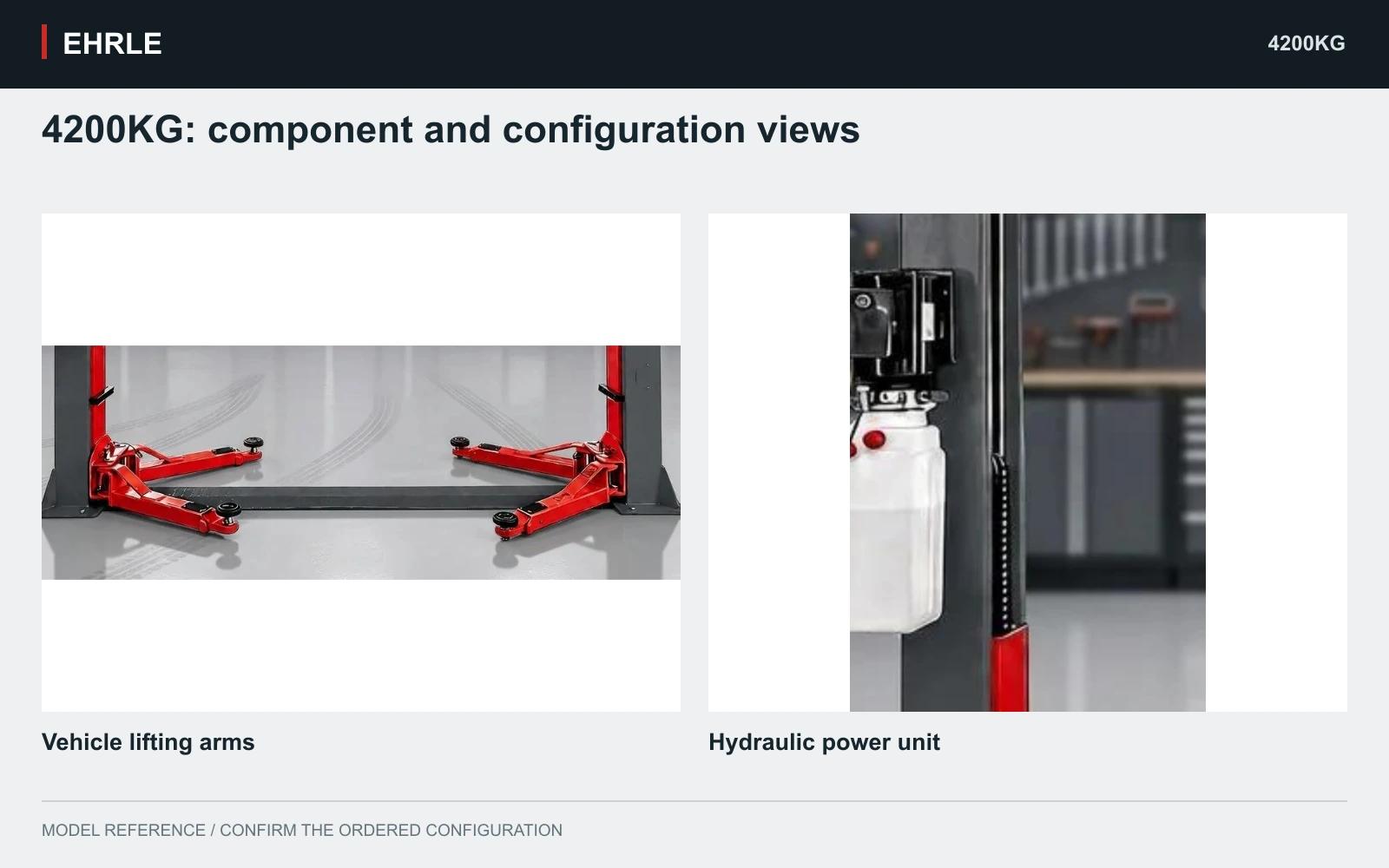

4200KG: component and configuration views
Vehicle lifting arms; hydraulic power unit. Confirm supplied parts and options for the selected configuration.

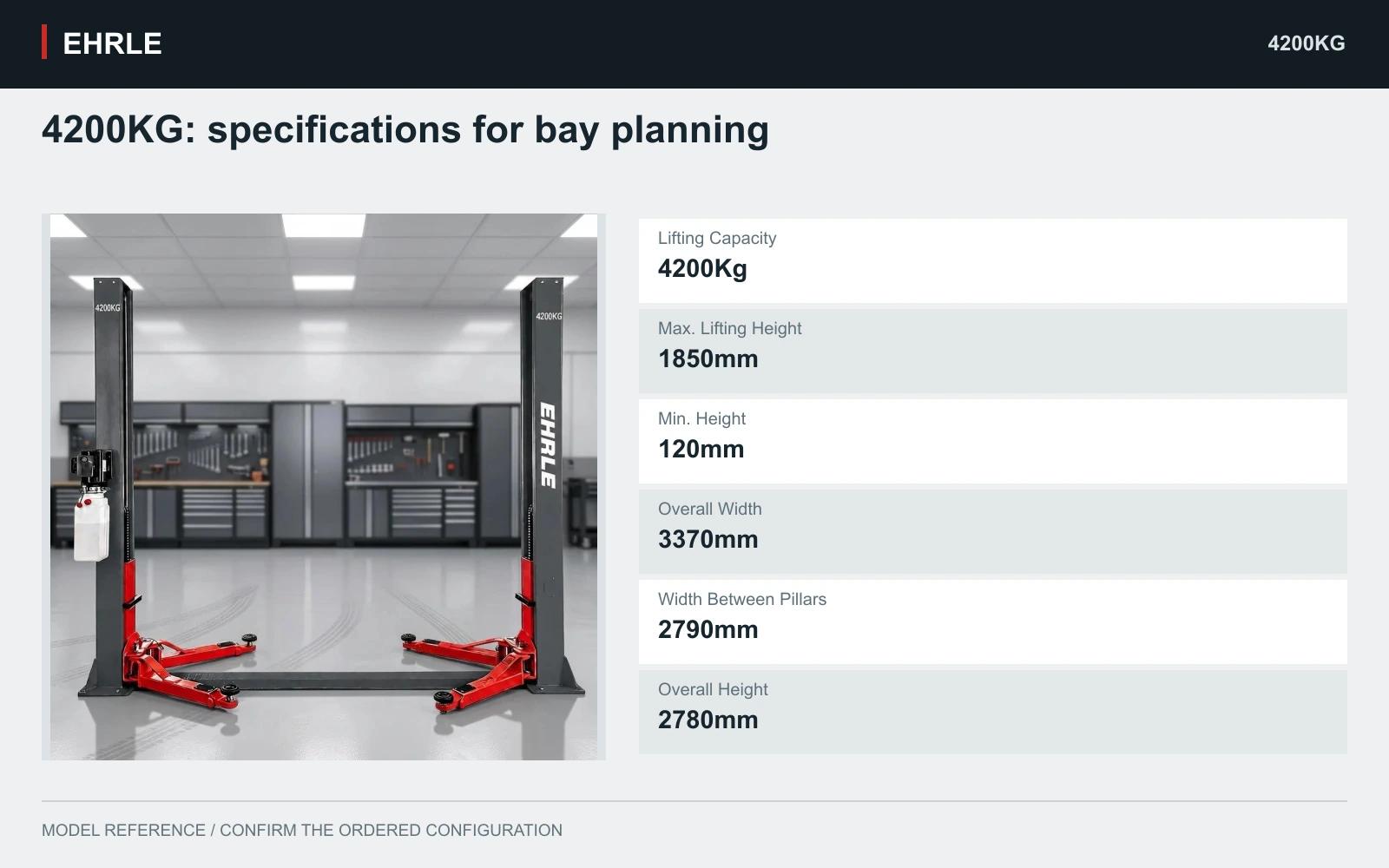

4200KG: specifications for bay planning
Lifting Capacity: 4200Kg; Max. Lifting Height: 1850mm; Min. Height: 120mm; Overall Width: 3370mm; Width Between Pillars: 2790mm; Overall Height: 2780mm.
TECHNICAL DATA
4200KG specifications
Compare the stated dimensions and ratings with your vehicle range, available space and site power supply. Supply options refer to the configuration selected when ordering.
| Model Number | 4200KG |
|---|---|
| Type | Two post car lift |
| Lifting Capacity | 4200Kg |
| Weight Capacity | 4200kg |
| Max. Lifting Height | 1850mm |
| Min. Height | 120mm |
| Lifting Time | ≤50s |
| Motor Voltage | 110v/220v/380v |
| Motor Power | 2.2Kw |
| Overall Width | 3370mm |
| Place Of Origin | CN,Guangdong |
| Drive Mode | Hydraulic |
| Warranty | 36 months |
| Width Between Pillars | 2790mm |
| Overall Height | 2780mm |
| Lifetime | 10 Years |
| Maximum Lift Height | 1850mm |
| Design | Two Post |
SPECIFY YOUR LIFT
Configuration and installation planning
- Listed product identifier: 4200KG; two-post hydraulic lift rated at 4,200 kg.
- Electrical order options: 110 V, 220 V or 380 V with a 2.2 kW motor; specify phase and frequency.
- Arm reach, adapters, release mechanism and column/base details require the final configuration sheet.
- Installation must use the model-specific foundation and anchoring requirements; do not substitute a different 4.2T lift's drawing.
For available documents, see Certificates. Check the holder, product model and document scope for the selected equipment.
Discuss this configuration →MODEL QUESTIONS
Questions about 4200KG
How does this 4200KG model differ from the other 4.2T floor-plate lift?
This model lists 3,370 mm overall width and 2,790 mm between pillars. The other 4.2T floor-plate listing gives 3,530 mm overall width and 3,000 mm clear column spacing. Equal capacity does not make their layouts or installation drawings interchangeable.
Is 2,780 mm the minimum ceiling height for this lift?
It is the listed equipment height. The workshop also needs clearance for the actual vehicle at the intended lift position, overhead obstructions and the operating arrangement. The ceiling requirement cannot be derived from column height alone.
Does a 120 mm minimum height guarantee access under a low car?
No. The listed minimum height is one dimension. Arm geometry, support adapters, vehicle lifting points and ground clearance together determine whether the lift can engage the vehicle correctly.
Does the 4200KG model lift more than the separate 4.2T floor-plate model?
Both the 4200KG model on this page and the separate 4.2T floor-plate model are rated at 4,200 kg, equivalent to 4.2 metric tonnes. The 4200KG identifier does not indicate extra capacity. Compare their individual dimensions, arm configurations and installation drawings to choose between them.
COMPARE YOUR OPTIONS
Related lift models

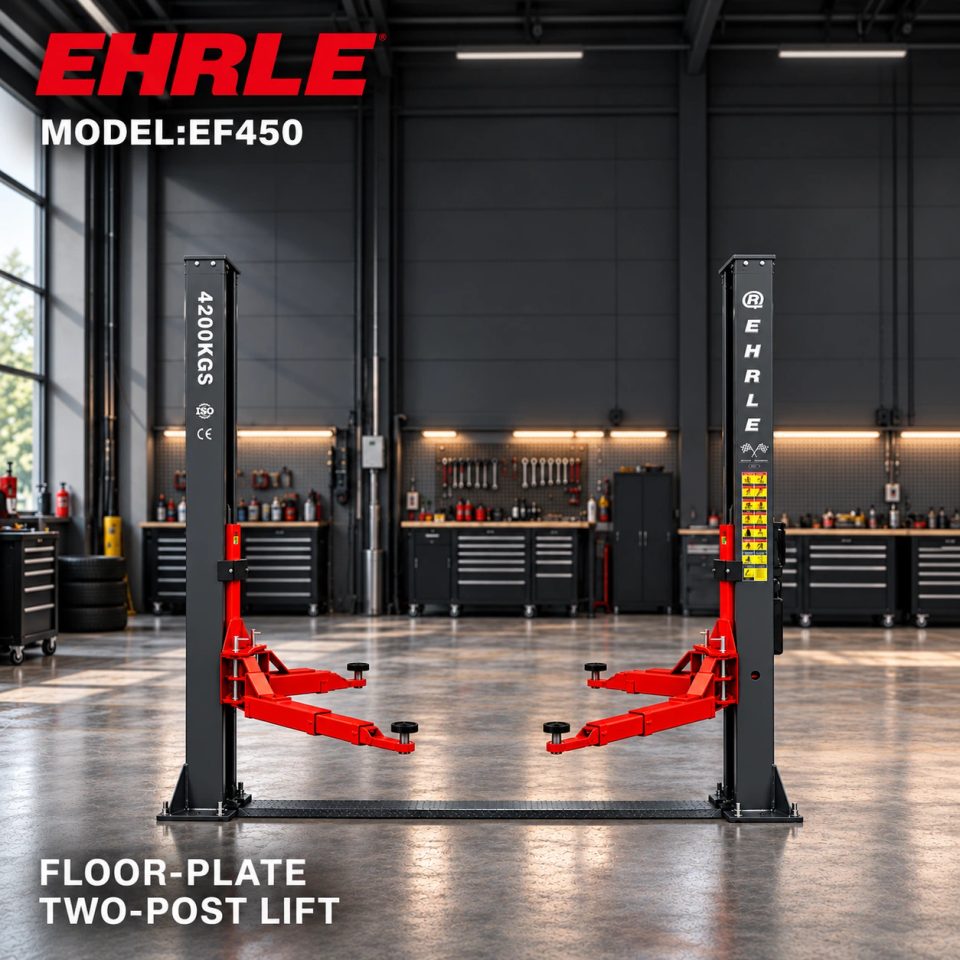

EF450 4.2T Floor-Plate Two-Post Lift
