EHRLE EC500 5T Asymmetric Two-Post Lift
A clear-floor lift with 45° asymmetric columns, 1,800 mm lifting height and 90 mm minimum height. Review its bay dimensions and lifting-point requirements for your vehicle range.
- Lifting capacity
- 5,000 kg
- Maximum lifting height
- 1,800 mm
Request the model drawing, electrical configuration, packing details and applicable documents with your quotation.
View all specifications ↓DESIGNED FOR THE TASK
EC500 equipment overview
A repair bay needs space for the vehicle, the technician and the equipment moving around them. The EC500 places its connecting structure overhead and uses 45° asymmetric columns. This arrangement is intended for passenger-vehicle inspection and repair, with door access determined by the actual vehicle position and body dimensions rather than capacity alone.
A 2.2 kW motor powers the hydraulic system, with 110 V, 220 V or 380 V versions listed for different workshop supplies. The equipment includes single-side manual lock release and automatic arm locking. Its published width measurements describe different parts of the lift, so the installation plan should distinguish overall width, column spacing and the drive-through opening.
Defined lifting and access dimensions
The EC500 is rated at 5,000 kg, with 1,800 mm maximum lifting height and 90 mm minimum height. The 2,500 mm drive-through opening is distinct from the 2,840 mm clear distance between columns.
Hydraulic drive and arm restraint
The listed equipment uses a VIBO hydraulic power unit, metal hydraulic oil pipes, single-side manual lock release and automatic arm locking. Follow the operating sequence specified for the supplied lift.
Passenger-vehicle repair and inspection
Suitable projects include dealership service bays and independent workshops performing underbody, suspension and wheel service. Vehicle weight, load distribution, approved lifting points and arm reach must all fit the selected arrangement.
Mixed passenger-car and SUV service bays
Potential applications include sedans, SUVs, MPVs, pickups, electric vehicles and hybrids. These are vehicle categories for assessment, not a blanket fit guarantee; low bodies and battery housings require particular attention to pad access.
A CLOSER LOOK
Equipment and configuration details
EC500: a 5T clear-floor service bay
5,000 kg rated capacity · Overhead two-post layout · 45° asymmetric columns
EC500: component and configuration views

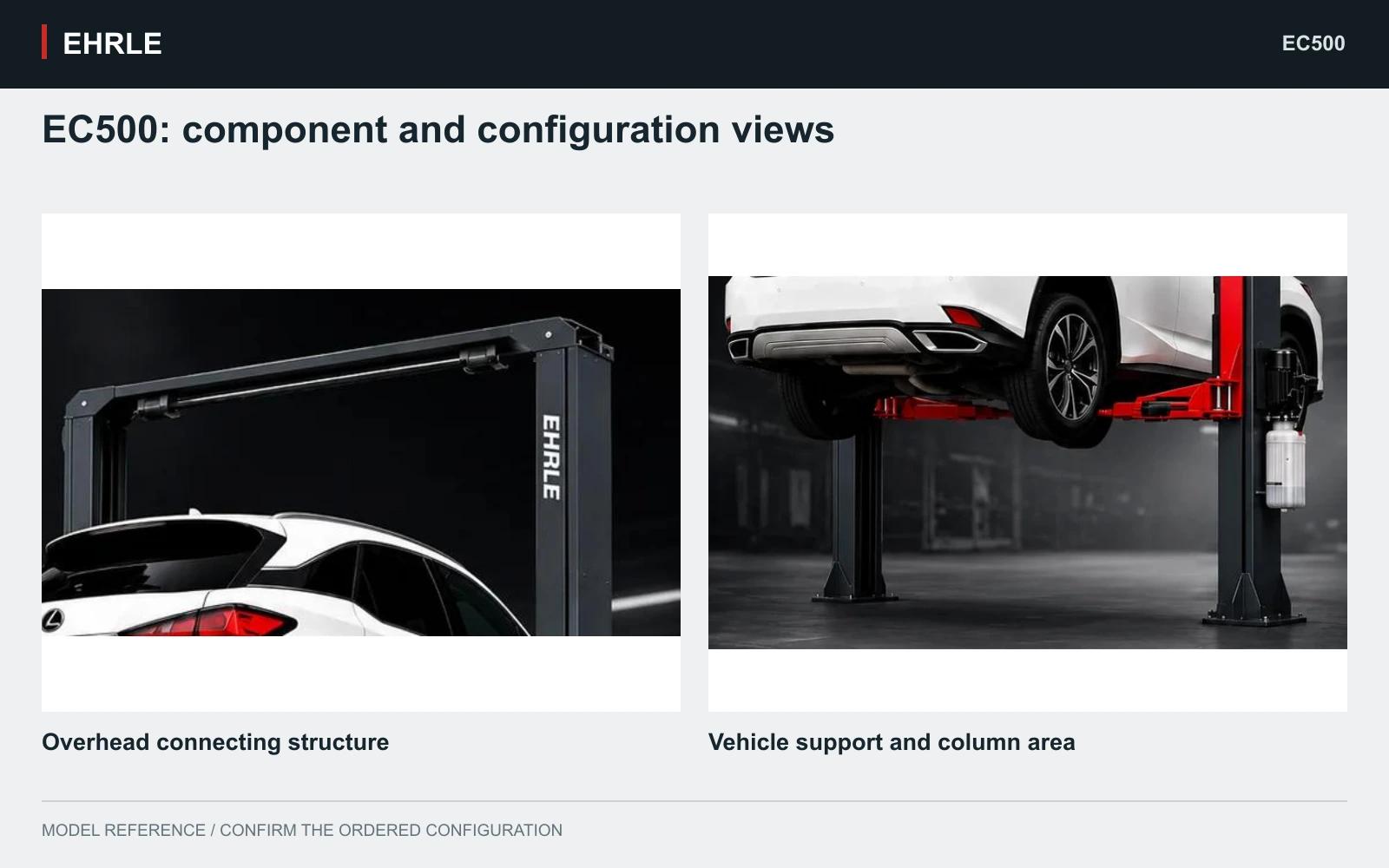

Overhead connecting structure; vehicle support and column area. Confirm supplied parts and options for the selected configuration.
EC500: specifications for bay planning
Lifting capacity: 5,000 kg; Maximum lifting height: 1,800 mm; Minimum height: 90 mm; Overall width: 3,500 mm; Clear column spacing: 2,840 mm; Drive-through width: 2,500 mm.
TECHNICAL DATA
EC500 specifications
Compare the stated dimensions and ratings with your vehicle range, available space and site power supply. Supply options refer to the configuration selected when ordering.
| Model | EC500 |
|---|---|
| Lift type | Overhead two-post hydraulic lift |
| Lifting capacity | 5,000 kg |
| Maximum lifting height | 1,800 mm |
| Minimum height | 90 mm |
| Lifting time | 55 s |
| Column layout | 45° asymmetric |
| Arm locking | Automatic arm locking system |
| Motor power | 2.2 kW |
| Power supply | 110 V / 220 V / 380 V |
| Hydraulic power unit | VIBO |
| Net weight | 660 kg |
| Overall height | 3,720 mm |
| Overall width | 3,500 mm |
| Front-view upper width | 3,260 mm |
| Clear distance between columns | 2,840 mm |
| Drive-through width | 2,500 mm |
| Lock release | Single-side manual release |
| Hydraulic lines | Metal hydraulic oil pipes |
| Steel cable | Maintenance-free design |
| Product certification | CE |
| Manufacturing quality management | ISO 9001 |
SPECIFY YOUR LIFT
Configuration and installation planning
- Listed configuration: 5,000 kg overhead hydraulic lift, 45° asymmetric columns, automatic arm locking and single-side manual release.
- Power selection: 2.2 kW motor with a specified 110 V, 220 V or 380 V supply; phase and frequency belong in the order specification.
- Installation information: use the EC500 drawing for concrete, anchors and working clearance around the 3,720 mm structure. The structure height is not a minimum ceiling-height recommendation.
For available documents, see Certificates. Check the holder, product model and document scope for the selected equipment. Open EC500 certificate ↗
Discuss this configuration →MODEL QUESTIONS
Questions about EC500
How does the EC500 differ from the EC600?
The EC500 is rated at 5,000 kg and is 3,720 mm high; the EC600 is rated at 6,000 kg and is 4,500 mm high. Both list 1,800 mm maximum lifting height and 2,840 mm clear spacing between posts. The EC500 specifically lists 45° asymmetric columns, while motor and power-supply choices also differ between the models.
Which EC500 width should I use for bay planning?
Use 3,500 mm for the plan-view overall width, 3,260 mm for the front-view upper width, 2,840 mm for clear column spacing and 2,500 mm for drive-through width. These describe different measuring positions. Working access and vehicle-door movement require additional space beyond the equipment dimensions.
Does the 90 mm minimum height establish fit for every low car?
No. The 90 mm figure describes the published minimum lift height. A low vehicle also needs compatible lifting points, sufficient pad access, suitable arm reach and an acceptable load distribution. Bodywork, side skirts and underfloor components can affect positioning even when vehicle weight is below 5,000 kg.
What does the 45° asymmetric layout mean for vehicle access?
The columns are arranged at the listed 45° asymmetric angle. Vehicle-door opening and entry or exit are planning considerations for this layout. Available door clearance still depends on vehicle width, door geometry and the position of the vehicle between the columns.
