6T asymmetric two-post layout
The hydraulic lift is rated at 6,000 kg for compatible vehicles. Its asymmetric arrangement must be assessed together with vehicle lifting points and axle loading when planning commercial-vehicle service.
Select a view below. Click the main image to open it full size.Product images illustrate the model and may use a composed workshop background. Confirm the supplied configuration, finish and accessories in your quotation.
EHRLE / VEHICLE LIFTS
EHRLE EC600 6T Asymmetric Two-Post Lift
A 6,000 kg two-post model with a 4,500 mm overall structure and 1,800 mm lifting height. Compare vehicle access, workshop height and available electrical configurations.
- Rated Lifting Capacity
- 6000 kg
- Maximum Lifting Height
- 1800 mm
Request the model drawing, electrical configuration, packing details and applicable documents with your quotation.
View all specifications ↓DESIGNED FOR THE TASK
EC600 equipment overview
Commercial vehicles can need more lifting capacity without fitting the same workshop envelope as passenger cars. The EC600 combines a 6,000 kg rating with a 4,500 mm overall height and an asymmetric two-post arrangement. Its published applications include vans, RVs and light trucks whose lifting points, dimensions and weight distribution suit the equipment.
The EC600 lists a 55-second lifting time, 1,800 mm maximum lifting height and single-side manual release. Motor choices are 2.2 or 3.0 kW, with several voltage and frequency configurations available. Selecting one electrical version and matching the vehicle range to the 2,840 mm post opening establishes a more useful order specification than a capacity figure alone.
A defined installation envelope
Published dimensions are 4,500 mm overall height, 3,550 mm overall width and 2,840 mm clear width between posts. These figures describe the equipment, with additional space needed for the raised vehicle and workshop access.
Motor and supply choices
The data lists 2.2 or 3.0 kW motors, configuration-dependent 110, 220, 380, 415 or 440 V supplies and 50/60 Hz options. One compatible combination is selected for the destination workshop.
Van and light-commercial maintenance
Use the EC600 as a candidate for underbody inspection and service on compatible vans and light trucks. The 6,000 kg rating does not establish suitability without lifting-point reach, axle loading and vehicle-clearance information.
RV service planning
RV workshops can assess the model against the actual vehicle body, wheelbase and approved support points. Roof equipment and the raised vehicle envelope belong in the ceiling-clearance assessment; the 4,500 mm structure height alone is insufficient.
A CLOSER LOOK
Equipment and configuration details

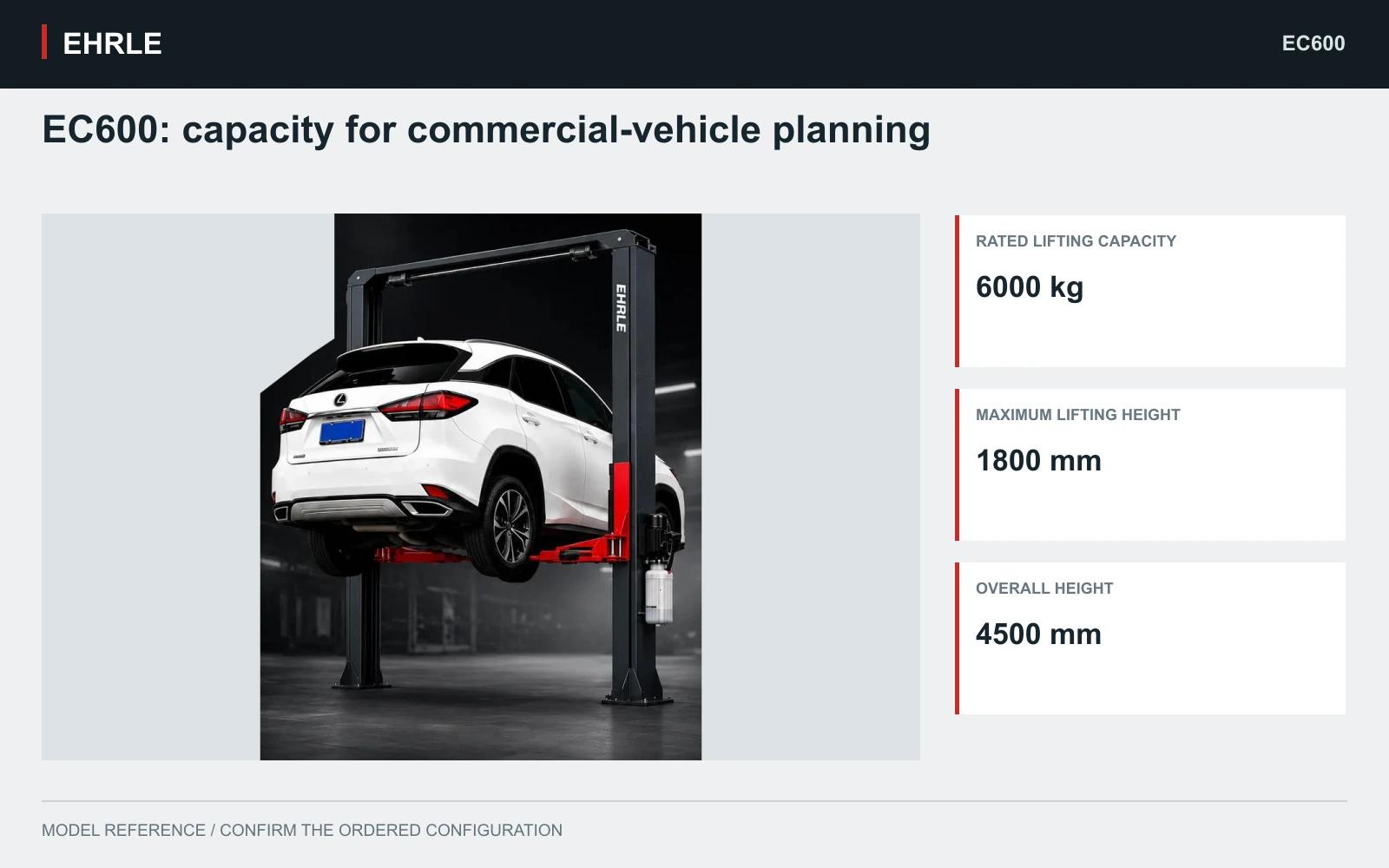

EC600: capacity for commercial-vehicle planning
6,000 kg rated capacity · Asymmetric two-post hydraulic lift

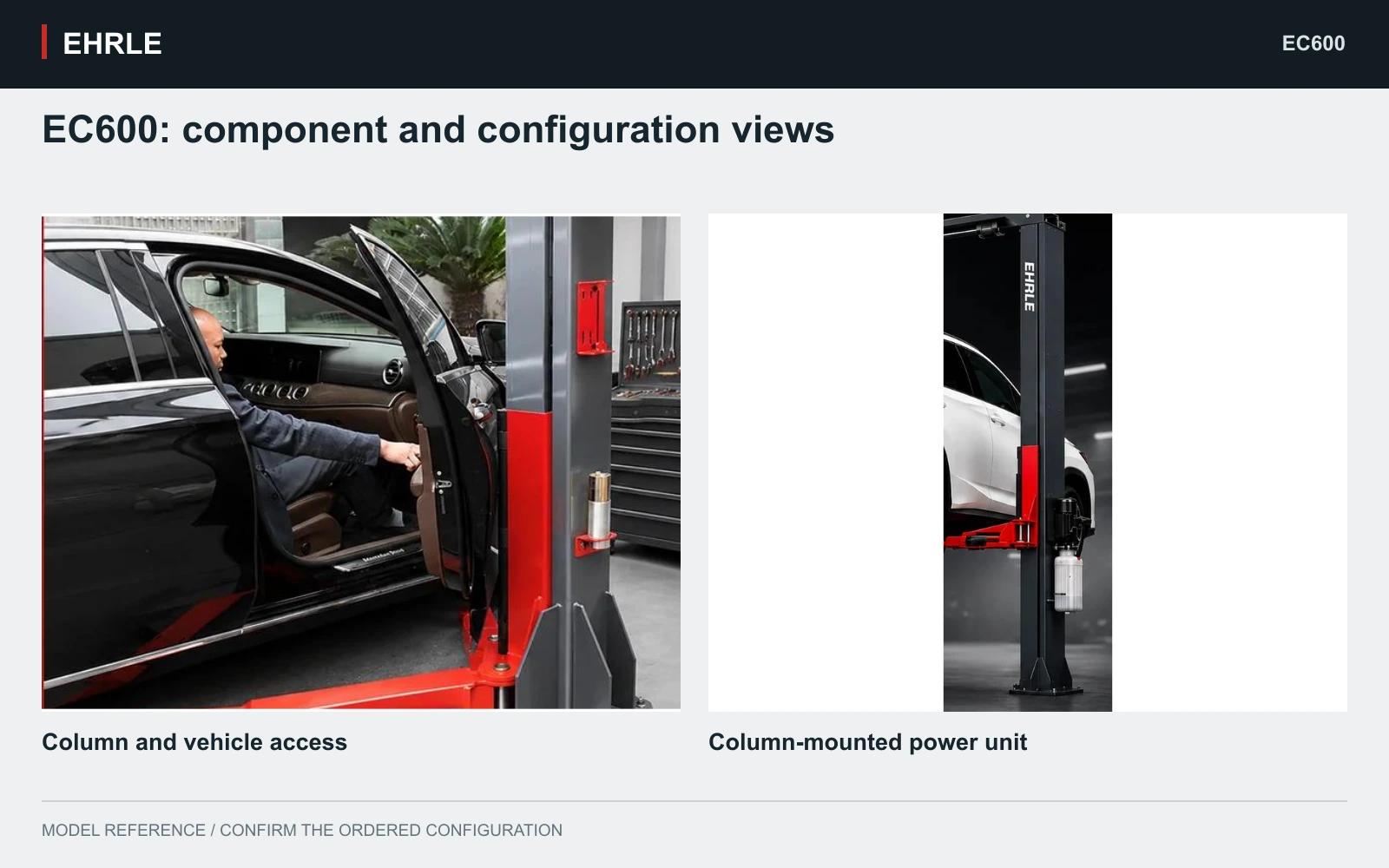

EC600: component and configuration views
Column and vehicle access; column-mounted power unit. Confirm supplied parts and options for the selected configuration.

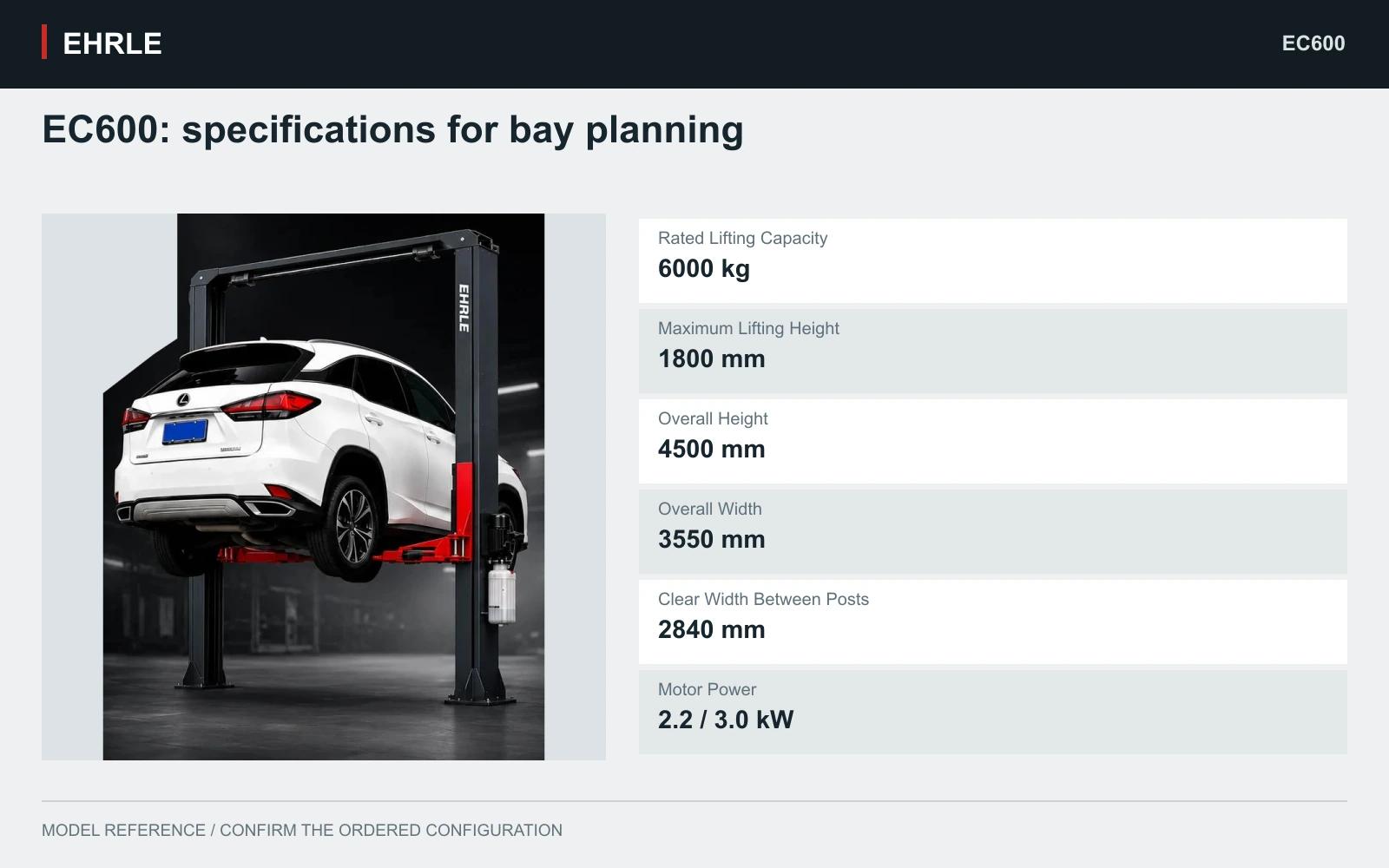

EC600: specifications for bay planning
Rated Lifting Capacity: 6000 kg; Maximum Lifting Height: 1800 mm; Overall Height: 4500 mm; Overall Width: 3550 mm; Clear Width Between Posts: 2840 mm; Motor Power: 2.2 / 3.0 kW.
TECHNICAL DATA
EC600 specifications
Compare the stated dimensions and ratings with your vehicle range, available space and site power supply. Supply options refer to the configuration selected when ordering.
| Model | EC600 |
|---|---|
| Type | Asymmetric two-post hydraulic vehicle lift |
| Rated Lifting Capacity | 6000 kg |
| Maximum Lifting Height | 1800 mm |
| Lifting Time | 55 s |
| Motor Power | 2.2 / 3.0 kW |
| Power Supply | 110 / 220 / 380 / 415 / 440 V, 50/60 Hz (configuration-dependent) |
| Drive System | Hydraulic |
| Overall Height | 4500 mm |
| Overall Width | 3550 mm |
| Clear Width Between Posts | 2840 mm |
| Release System | Single-side manual release |
SPECIFY YOUR LIFT
Configuration and installation planning
- Listed operating arrangement: asymmetric two-post hydraulic lift with single-side manual release.
- Select a 2.2 or 3.0 kW motor and the required voltage, phase and frequency as a compatible ordered configuration; the options do not describe an automatically universal power supply.
- Provide axle loads, vehicle dimensions and lifting-point information with the bay and slab drawings so the correct arms, installation requirements and supplied scope can be established.
For available documents, see Certificates. Check the holder, product model and document scope for the selected equipment.
Discuss this configuration →MODEL QUESTIONS
Questions about EC600
Does the EC600 lift higher than the EC500?
Both models list a maximum lifting height of 1,800 mm. The EC600 instead increases rated capacity from 5,000 to 6,000 kg and has a taller 4,500 mm overall structure compared with the EC500's 3,720 mm structure. Overall height and lifting height describe different dimensions.
Is 2,840 mm the EC600's overall width?
No. It is the clear width between the posts. Overall equipment width is 3,550 mm. Access around the posts, vehicle doors and workshop equipment requires additional room; the source does not give a separate EC600 drive-through width.
Can I specify 415 V or 440 V for the EC600?
The model specification lists 415 V and 440 V alongside 110 V, 220 V and 380 V, with 50/60 Hz configuration choices. Include supply voltage, phase and frequency in the enquiry so they can be paired with the selected 2.2 or 3.0 kW motor.
Does a 6,000 kg rating cover any van or RV below that weight?
Weight is one selection condition. Vehicle dimensions, load distribution, approved lifting points and arm reach must also suit the lift. The source names vans, RVs and light trucks as applications, but does not provide a universal vehicle list or an arm-reach dimension.
COMPARE YOUR OPTIONS
Related lift models
EC500 5T Asymmetric Two-Post Lift
A clear-floor lift with 45° asymmetric columns, 1,800 mm lifting height and 90 mm minimum height. Review its bay dimensions and lifting-point requirements for your vehicle range.
View details →

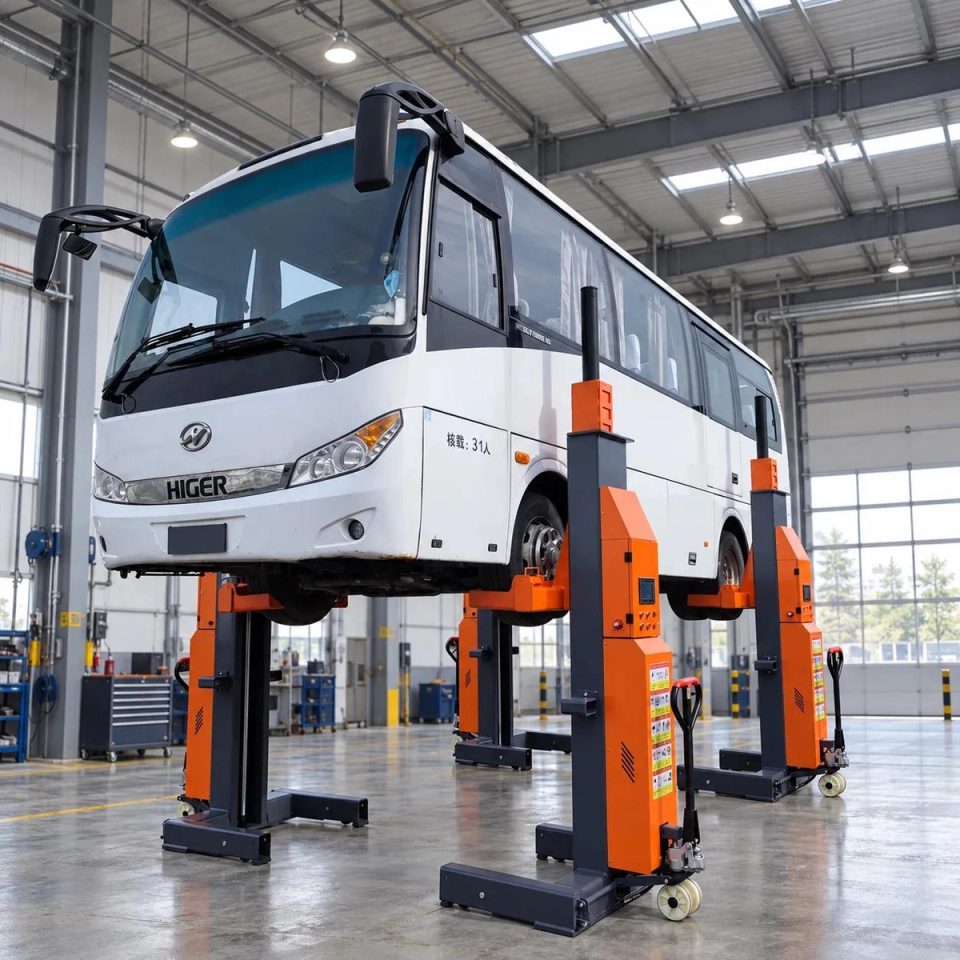

BH-34T Mobile Column Lift System
