Surface-mounted scissor arrangement
The 6018C is documented as a surface-mounted alignment lift. Plan floor anchoring, ramps and vehicle approach around that configuration.
Select a view below. Click the main image to open it full size.Product images illustrate the model and may use a composed workshop background. Confirm the supplied configuration, finish and accessories in your quotation.
EHRLE / VEHICLE LIFTS
EHRLE 6018C 4T Alignment Scissor Lift
A surface-mounted alignment lift with 4,500 × 630 mm runways, front turnplates and rear slip plates. An optional rolling bridge jack adds wheel-free access for compatible service tasks.
- Lifting Capacity
- 4000 kg
- Runway Length
- 4500 mm
Request the model drawing, electrical configuration, packing details and applicable documents with your quotation.
View all specifications ↓DESIGNED FOR THE TASK
6018C equipment overview
The 6018C provides a drive-on alignment platform for a workshop specifying a surface-mounted service bay. Its 4,000 kg main rating and 4,500 mm runway length should be considered alongside tire positions, wheelbase and track. Front turnplates and rear slip plates form the vehicle-support arrangement for alignment work, while the measurement machine remains a separate item unless included in the order.
Secondary lifting is available through an optional rolling bridge jack on the inner runway rails. This lets the equipment order reflect the actual mix of alignment, inspection and wheel-free maintenance work. Before fixing the bay layout, obtain the selected platform heights, runway spacing and ramp geometry; the published 4,500 × 630 mm runway size alone does not define the complete installation.
Runways equipped for alignment work
Each runway measures 4,500 × 630 mm. Front turnplates and rear slip plates support the alignment process with a compatible, separately specified measuring system.
Optional rolling secondary lift
A rolling bridge jack can travel along the inner runway rails. Its separate rating, lift range and support arrangement depend on the accessory selected.
Passenger-vehicle alignment and inspection
The 6018C suits a surface-mounted bay for compatible passenger vehicles within the 4,000 kg main-lift rating. Wheelbase, track and ramp clearance determine the final vehicle fit.
Mixed alignment and wheel-service tasks
Specify a suitable rolling jack when the bay also needs wheel-free work at approved lifting points. Runway lifting by itself keeps the vehicle supported at its tires.
A CLOSER LOOK
Equipment and configuration details

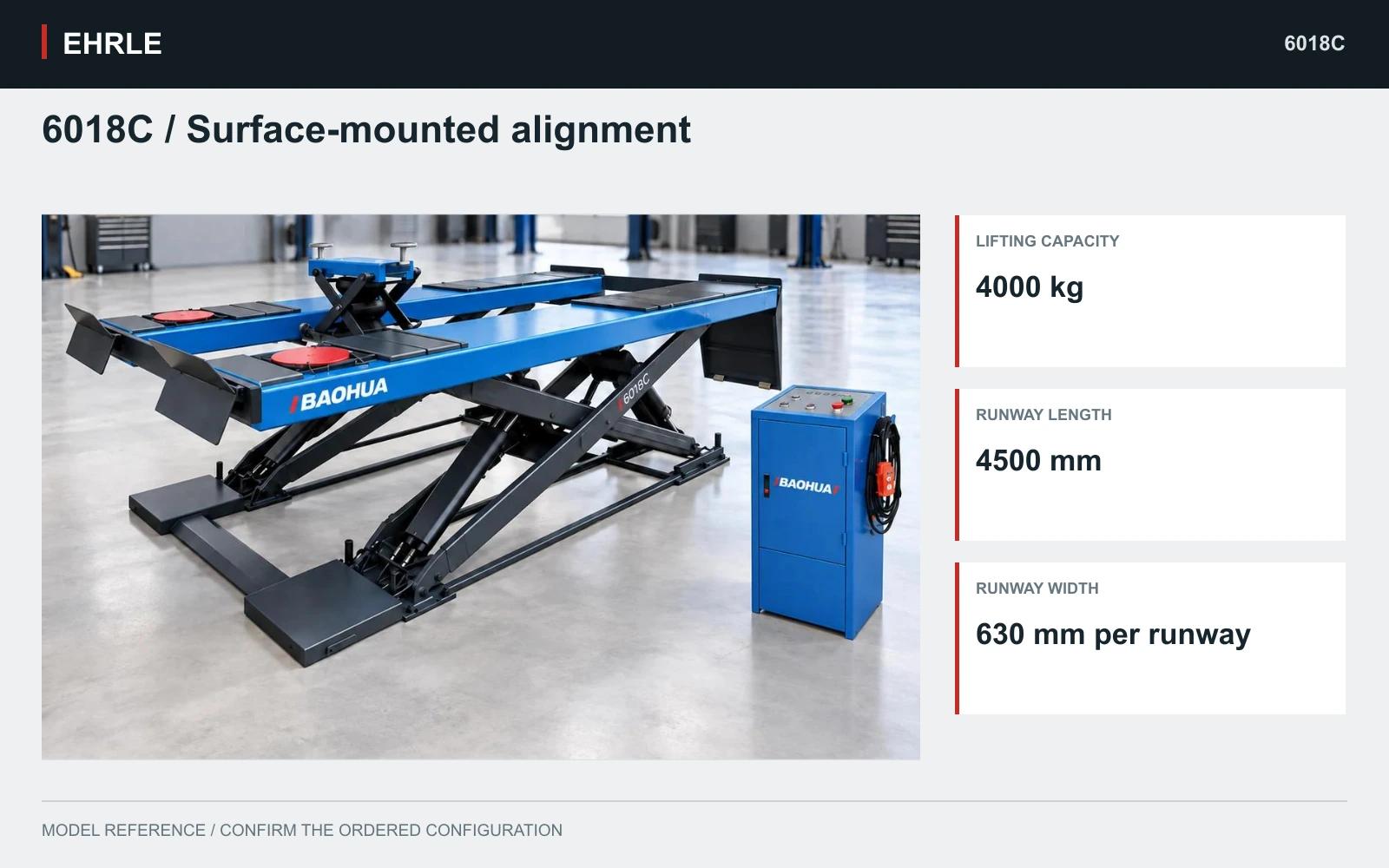

6018C / Surface-mounted alignment
4,000 kg main-lift rating and 4,500 × 630 mm runways.

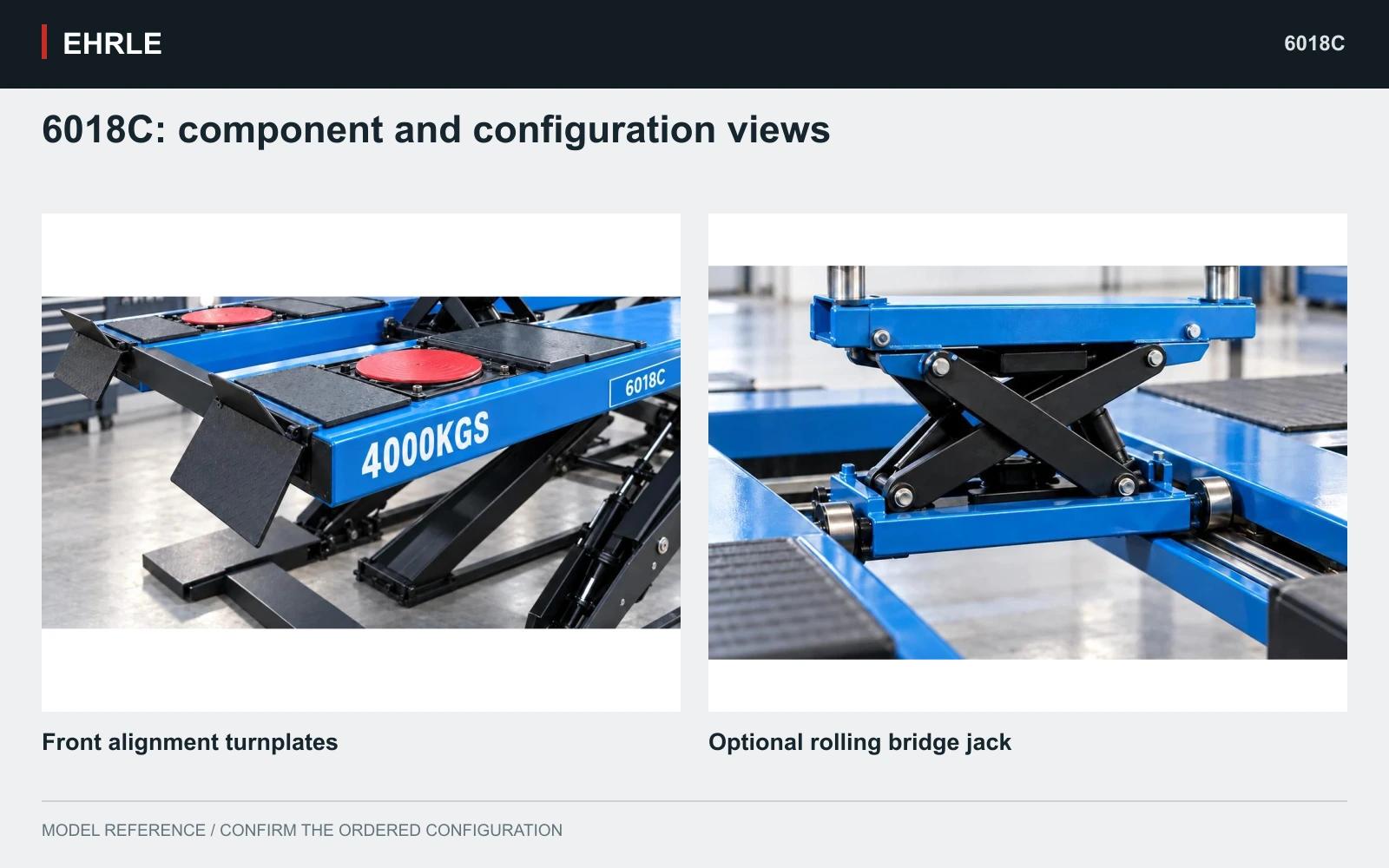

6018C: component and configuration views
Front alignment turnplates; optional rolling bridge jack. Confirm supplied parts and options for the selected configuration.

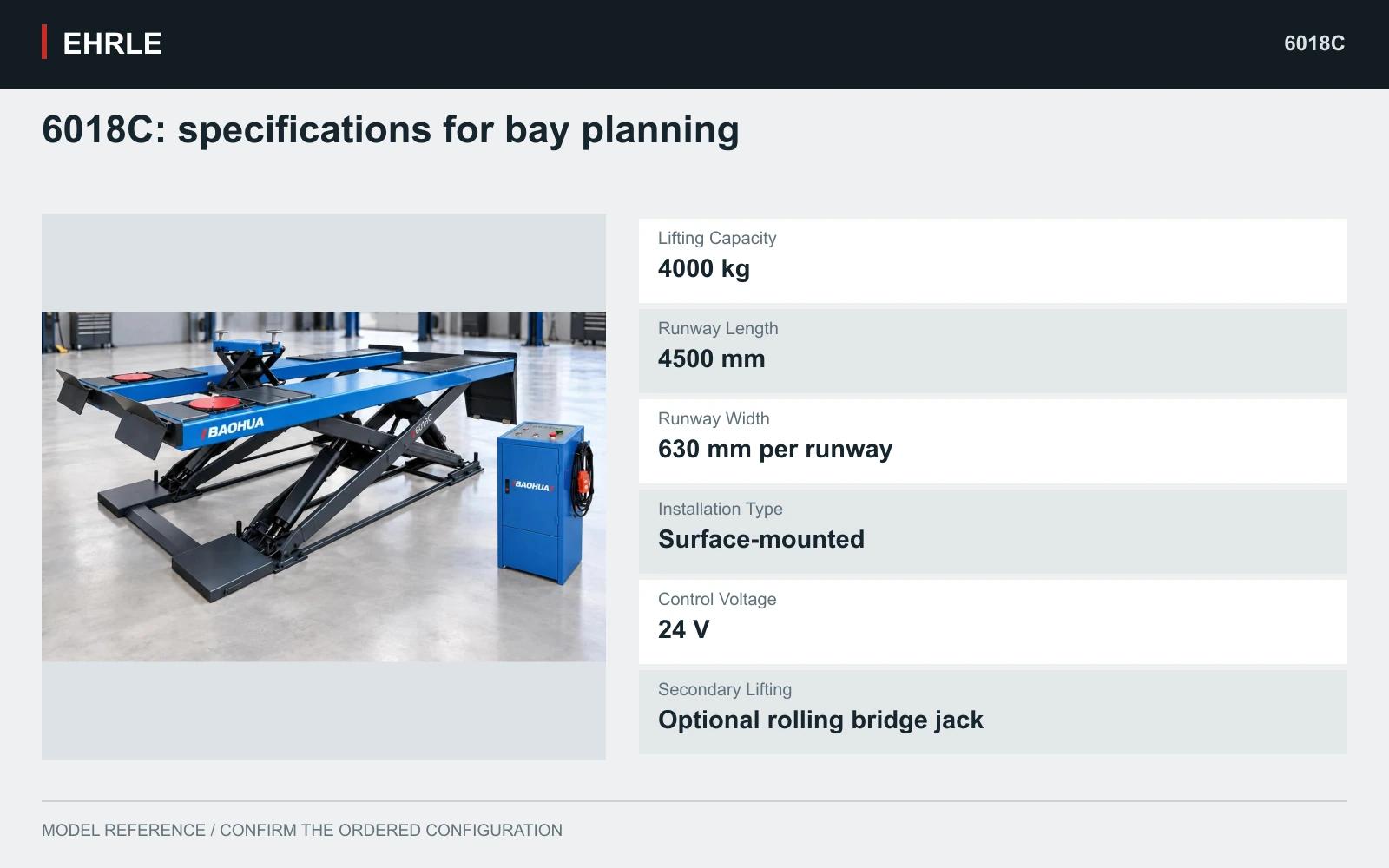

6018C: specifications for bay planning
Lifting Capacity: 4000 kg; Runway Length: 4500 mm; Runway Width: 630 mm per runway; Installation Type: Surface-mounted; Control Voltage: 24 V; Secondary Lifting: Optional rolling bridge jack.
TECHNICAL DATA
6018C specifications
Compare the stated dimensions and ratings with your vehicle range, available space and site power supply. Supply options refer to the configuration selected when ordering.
| Model | 6018C |
|---|---|
| Installation Type | Surface-mounted |
| Lifting Capacity | 4000 kg |
| Runway Length | 4500 mm |
| Runway Width | 630 mm per runway |
| Motor Power | 2.2 kW |
| Power Supply | 220 V / 380 V options; confirm phase and frequency |
| Control Voltage | 24 V |
| Drive System | Electro-hydraulic |
| Alignment Features | Front turnplates and rear slip plates |
| Secondary Lifting | Optional rolling bridge jack |
SPECIFY YOUR LIFT
Configuration and installation planning
- Listed main arrangement: surface-mounted 4,000 kg lift with front turnplates and rear slip plates.
- Optional: rolling bridge jack; its rating and lifting range are specified separately.
- Separate equipment: wheel-alignment measuring machine, targets and clamps unless expressly included in the quotation.
- Power order choice: 220 V or 380 V for the 2.2 kW drive; specify phase and frequency. Platform heights and final installation dimensions remain drawing-dependent.
For available documents, see Certificates. Check the holder, product model and document scope for the selected equipment.
Discuss this configuration →MODEL QUESTIONS
Questions about 6018C
How does the 6018C installation differ from the BH6108?
The 6018C is surface-mounted, while the BH6108 is a recessed model using prepared pits. The 6018C lists an optional rolling jack; the BH6108 documents an integrated secondary scissor stage. They require different installation and accessory plans.
Does the 6018C include equipment that measures wheel alignment?
Its turnplates and rear slip plates provide the vehicle-support layout. A measuring machine, targets and clamps are separate equipment unless the quotation specifically includes them.
Which 6018C dimensions are still needed to assess a low-clearance car?
The documented runways are 4,500 × 630 mm. Obtain the selected minimum platform height and approach-ramp geometry, then compare them with the vehicle's ground clearance and approach characteristics. A low-profile description alone does not establish fit.
Can I apply the 6018C 4T rating to its rolling jack?
No. The 4,000 kg rating belongs to the main lift. The optional jack has its own capacity, lifting range and support arrangement, which must be specified for the vehicles and tasks involved.
COMPARE YOUR OPTIONS
Related lift models

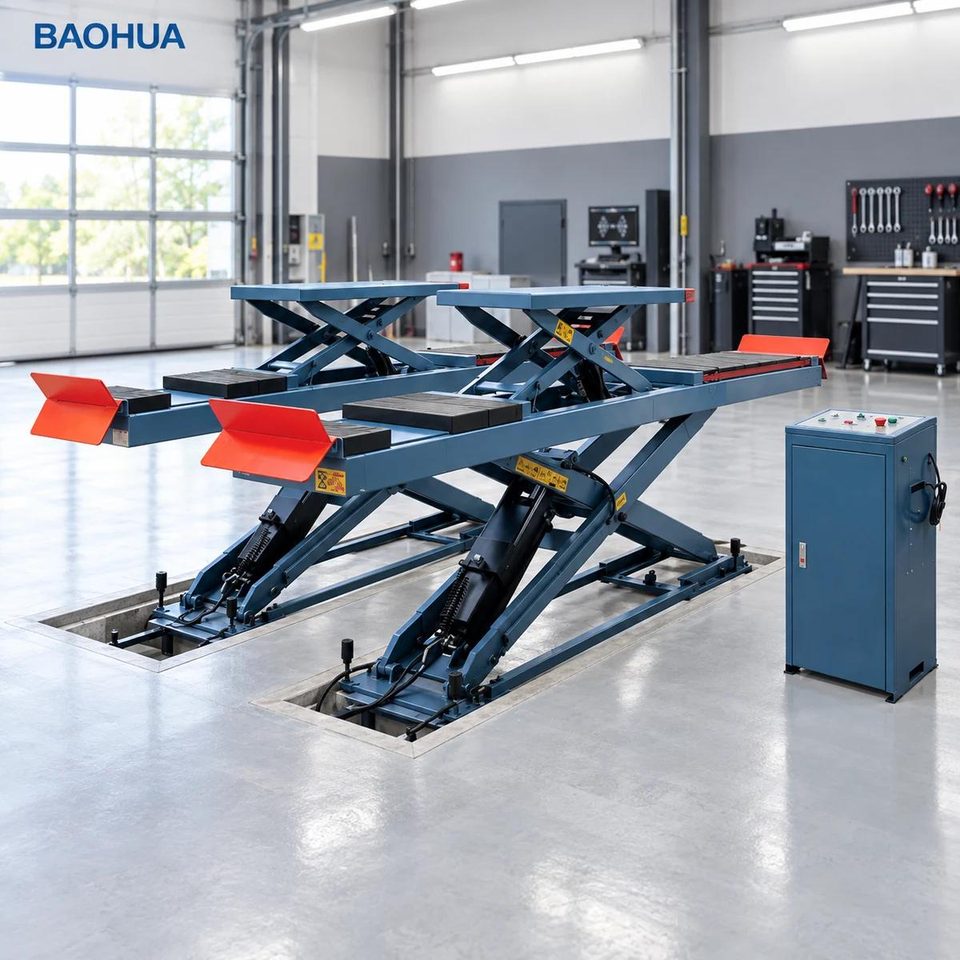

BH6108 4T In-Ground Alignment Lift
A recessed alignment lift with 4,500 mm runways, 1,850 mm main lifting height and integrated secondary platforms. Main and secondary capacities are 4,000 kg and 3,000 kg respectively.
View details →

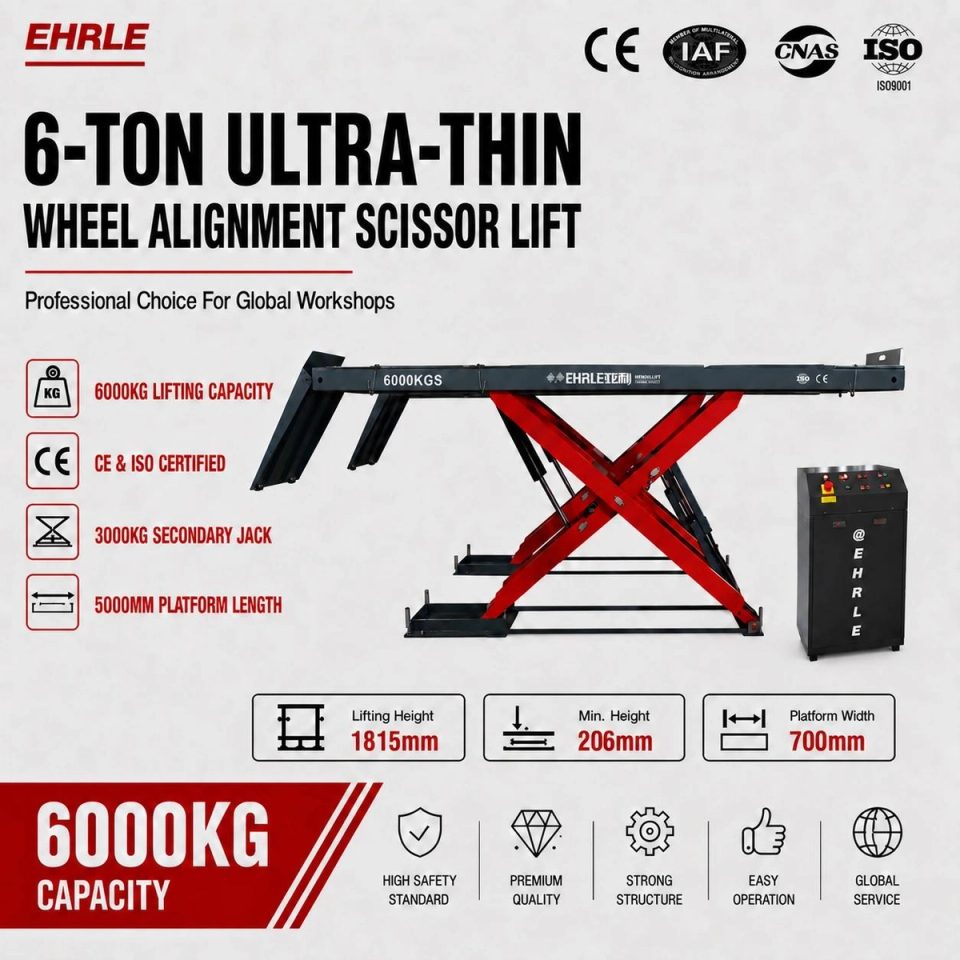

EH-600C 6T Alignment Scissor Lift
