6T main platform, separately rated secondary lift
The main lift is rated at 6,000 kg. The optional secondary trolley is rated at 3,000 kg with 436 mm lifting height; the main rating does not apply to this accessory.
Select a view below. Click the main image to open it full size.Product images illustrate the model and may use a composed workshop background. Confirm the supplied configuration, finish and accessories in your quotation.
EHRLE / VEHICLE LIFTS

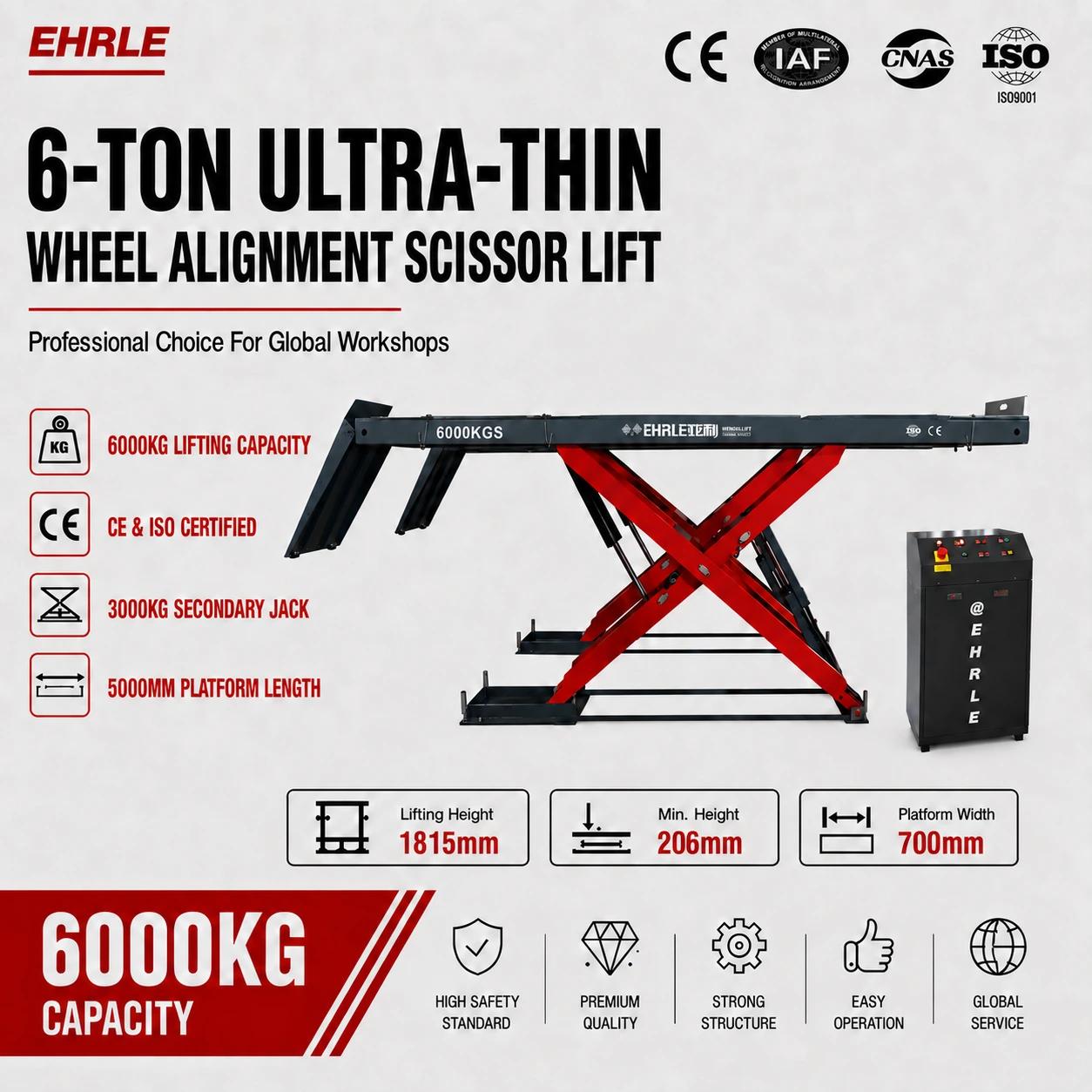

EHRLE EH-600C 6T Alignment Scissor Lift
A low-profile alignment lift with 5,000 × 700 mm runways and surface or recessed installation. The optional secondary lifting trolley has a separate 3,000 kg capacity.
- Main Lifting Capacity
- 6000 kg
- Secondary Jack Lifting Capacity
- 3000 kg
- Lifting Height
- 1815 mm
Request the model drawing, electrical configuration, packing details and applicable documents with your quotation.
View all specifications ↓DESIGNED FOR THE TASK
EH-600C equipment overview
For a workshop comparing larger alignment platforms, the EH-600C offers a defined combination of load rating, runway size and installation choices. The main structure raises a compatible vehicle to 1,815 mm and has a 206 mm minimum height. Its 5,000 mm by 700 mm platforms provide the dimensions needed to assess tire placement alongside the vehicle's weight, wheelbase and track.
The bay can be planned around a surface installation or a recessed arrangement. The equipment has a 6,020 mm base length, so approach space and operator access need to be included beyond that footprint. A secondary lifting trolley and SUV support frame are optional; identify them in the equipment schedule when the intended service work needs more than runway support.
Runway dimensions for vehicle matching
Each runway measures 5,000 × 700 mm, with 940 mm platform spacing. Match the vehicle's tire positions to this layout as well as its total load to the lift rating.
Two installation arrangements
Surface-mounted and recessed versions are listed. The 206 mm minimum height and 6,020 mm base length are useful starting points for approach and floor planning.
Wheel alignment and chassis inspection
Consider the EH-600C for an alignment bay serving vehicles that fit its runway geometry and 6,000 kg rating. The measuring equipment and vehicle approach must be planned with the lift.
Runway service with optional wheel-free access
Underbody inspection uses the main runways. Tire or suspension tasks that require secondary lifting need the appropriate trolley, approved lifting points and a load within the trolley's separate rating.
A CLOSER LOOK
Equipment and configuration details

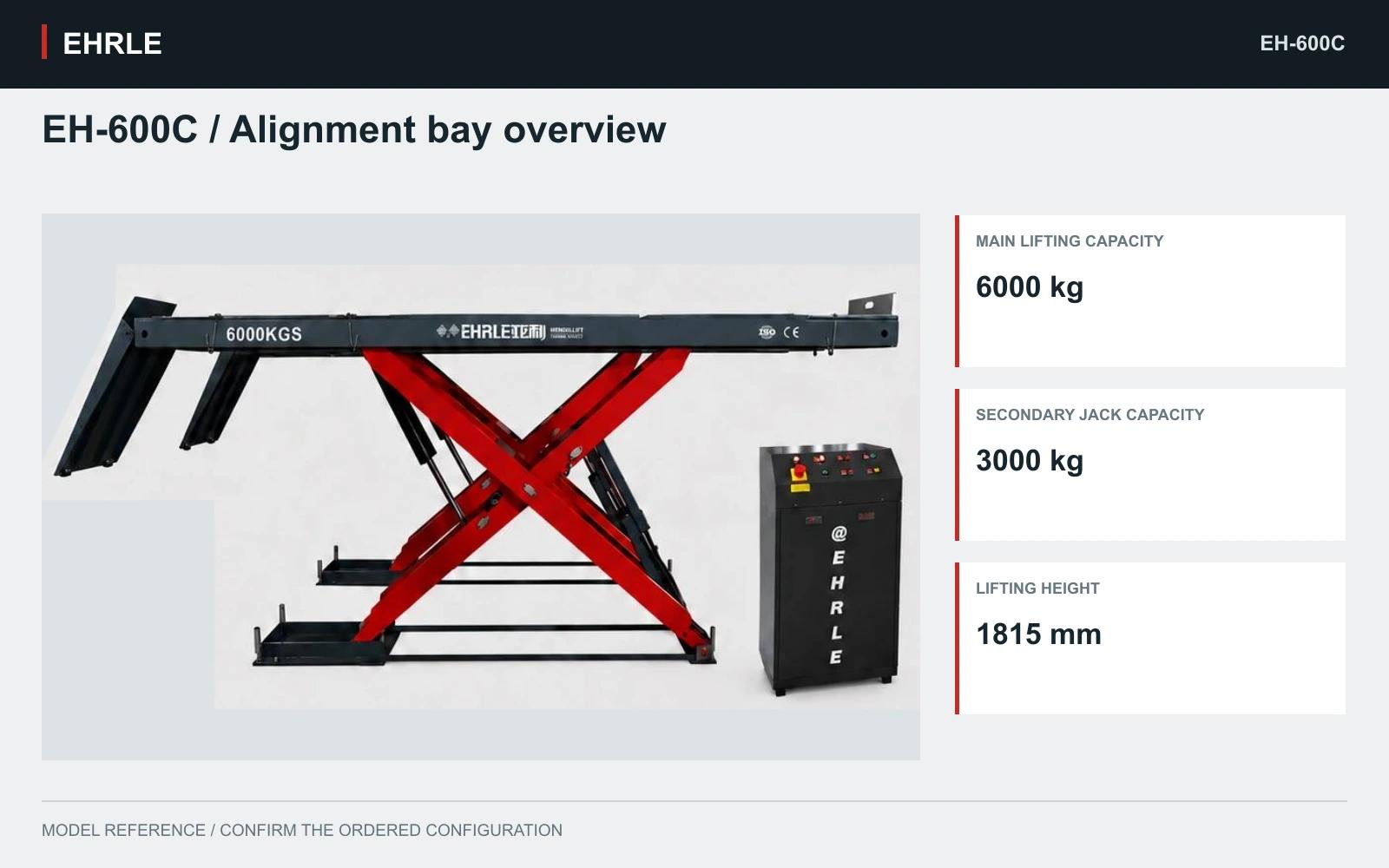

EH-600C / Alignment bay overview
6,000 kg main-lift capacity with two 5,000 × 700 mm runways.

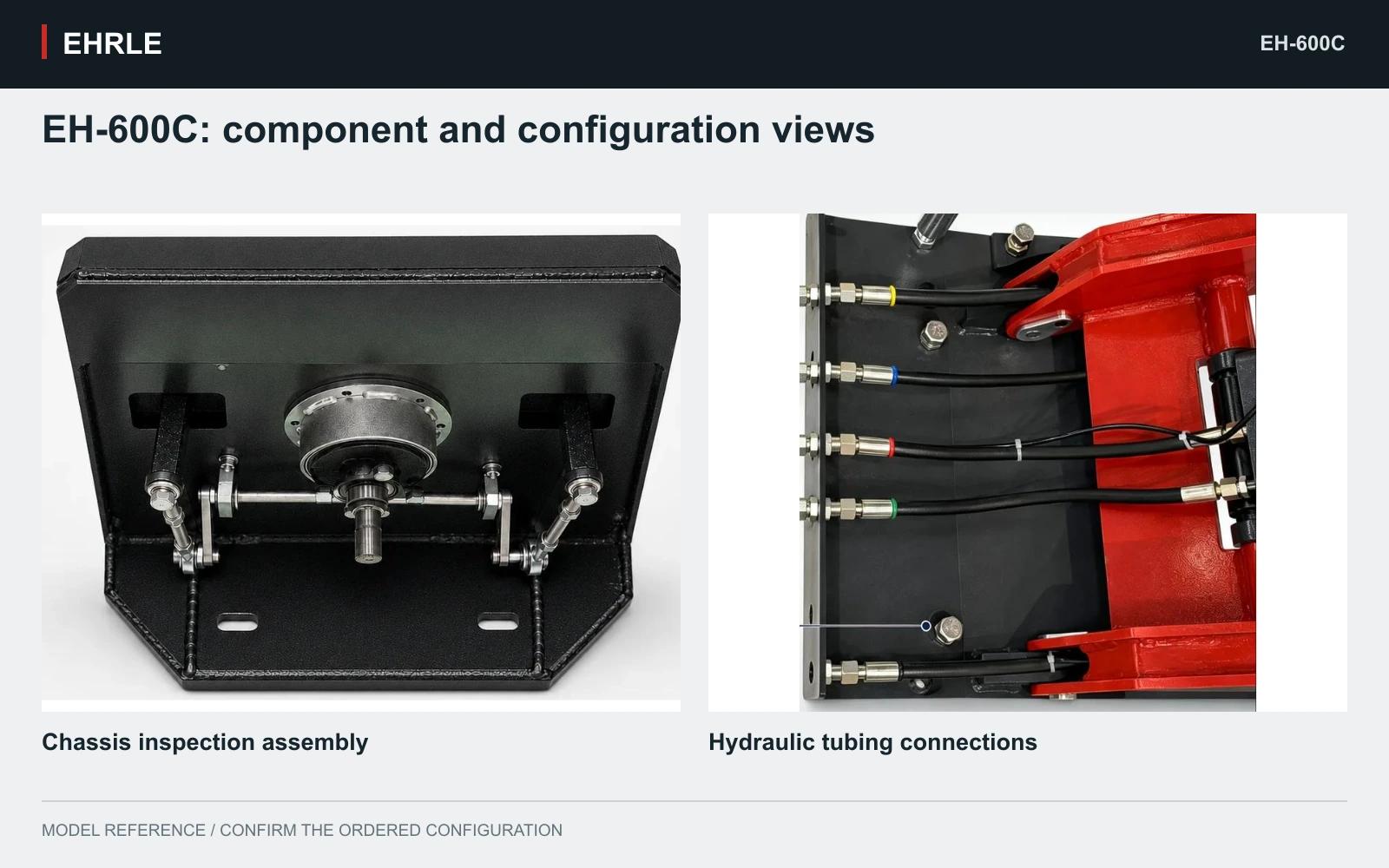

EH-600C: component and configuration views
Chassis inspection assembly; hydraulic tubing connections. Confirm supplied parts and options for the selected configuration.

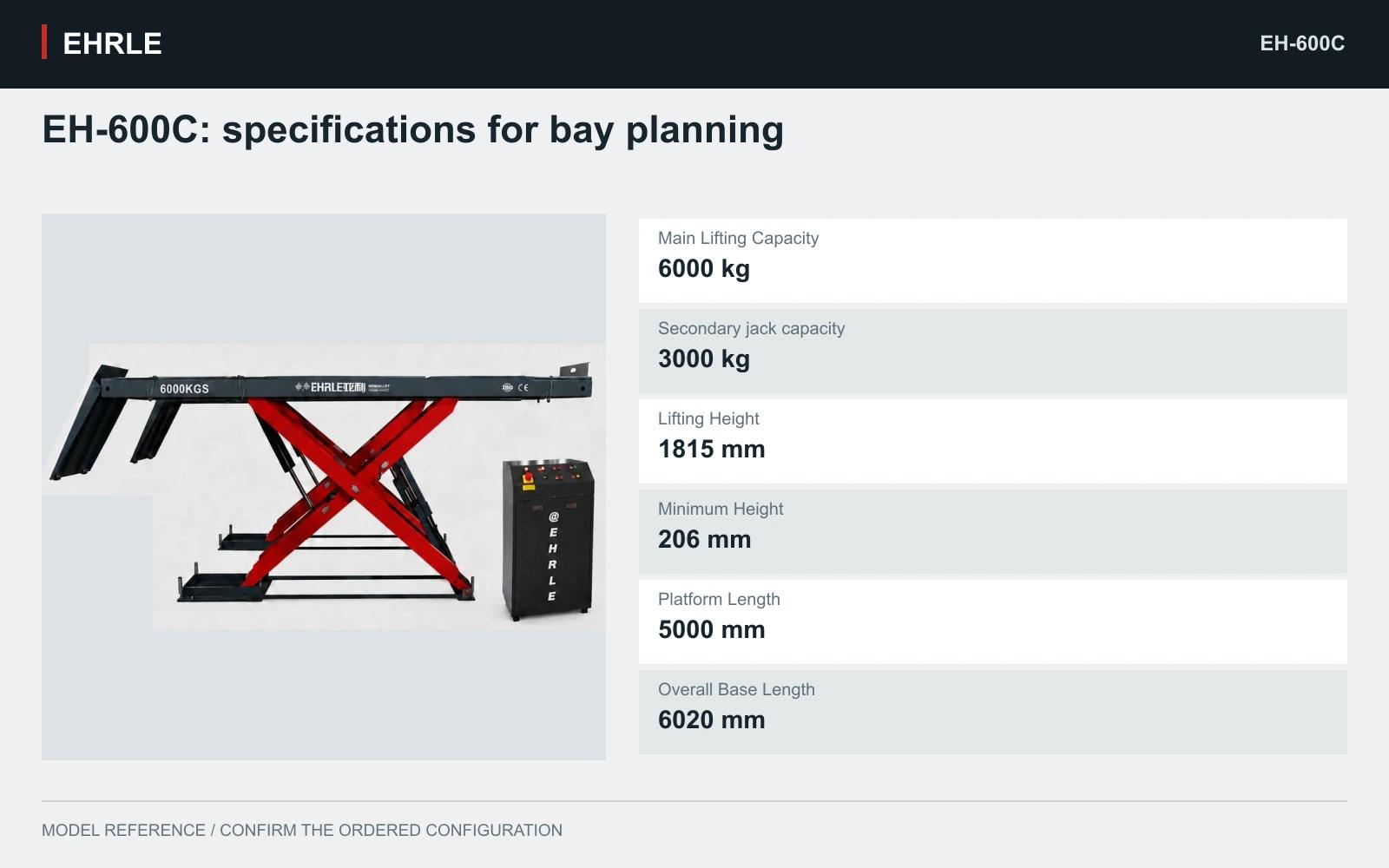

EH-600C: specifications for bay planning
Main Lifting Capacity: 6000 kg; Secondary jack capacity: 3000 kg; Lifting Height: 1815 mm; Minimum Height: 206 mm; Platform Length: 5000 mm; Overall Base Length: 6020 mm.
TECHNICAL DATA
EH-600C specifications
Compare the stated dimensions and ratings with your vehicle range, available space and site power supply. Supply options refer to the configuration selected when ordering.
| Model | EH-600C |
|---|---|
| Product Type | Ultra-thin wheel alignment scissor lift |
| Main Lifting Capacity | 6000 kg |
| Secondary Jack Lifting Capacity | 3000 kg |
| Lifting Height | 1815 mm |
| Secondary Jack Lifting Height | 436 mm |
| Minimum Height | 206 mm |
| Platform Length | 5000 mm |
| Platform Width | 700 mm |
| Platform Spacing | 940 mm |
| Motor Power | 3 kW |
| Three-Phase Supply | 220/380 V, 50/60 Hz |
| Single-Phase Supply | 110/220 V, 50/60 Hz |
| Net / Gross Weight | 3060 / 3120 kg |
| Overall Base Length | 6020 mm |
| Installation | Surface-mounted or recessed |
| Optional Accessories | Secondary lifting trolley; SUV support frame |
SPECIFY YOUR LIFT
Configuration and installation planning
- Listed main configuration: 6,000 kg alignment scissor lift with a 3 kW electro-hydraulic drive.
- Order choice: surface-mounted or recessed installation, using the corresponding factory drawing.
- Optional equipment: 3,000 kg secondary lifting trolley and SUV support frame; inclusion follows the quotation.
- Electrical order choices: 220/380 V three-phase or 110/220 V single-phase, with 50/60 Hz options; select one supply configuration.
For available documents, see Certificates. Check the holder, product model and document scope for the selected equipment.
Discuss this configuration →MODEL QUESTIONS
Questions about EH-600C
Can the EH-600C be used in a workshop that has no lift pits?
A surface-mounted arrangement is listed for the EH-600C. Use that installation drawing to assess the 206 mm minimum height, ramp approach, floor suitability and working space. Recessed installation is a separate layout choice.
Does the EH-600C price automatically include a 3T trolley?
The secondary lifting trolley is an optional accessory. Its listed rating is 3,000 kg and lifting height is 436 mm. It needs to be included explicitly in the order specification.
How much of the bay does the EH-600C base occupy?
The listed base length is 6,020 mm. That value describes the equipment base, while vehicle approach, passageways, control access and service space require additional room in the layout.
Are the EH-600C voltage choices available on one universal power unit?
The documented single-phase and three-phase voltages are alternative order configurations. Give the supplier the site's voltage, phase and frequency so the selected 3 kW drive matches the installation.
