Main and secondary lifting functions
The main lift has a 6,000 kg rating. The listed secondary jack is rated at 4,000 kg with 425 mm lifting height, so secondary service must be planned within its own limits.
Select a view below. Click the main image to open it full size.Product images illustrate the model and may use a composed workshop background. Confirm the supplied configuration, finish and accessories in your quotation.
EHRLE / VEHICLE LIFTS

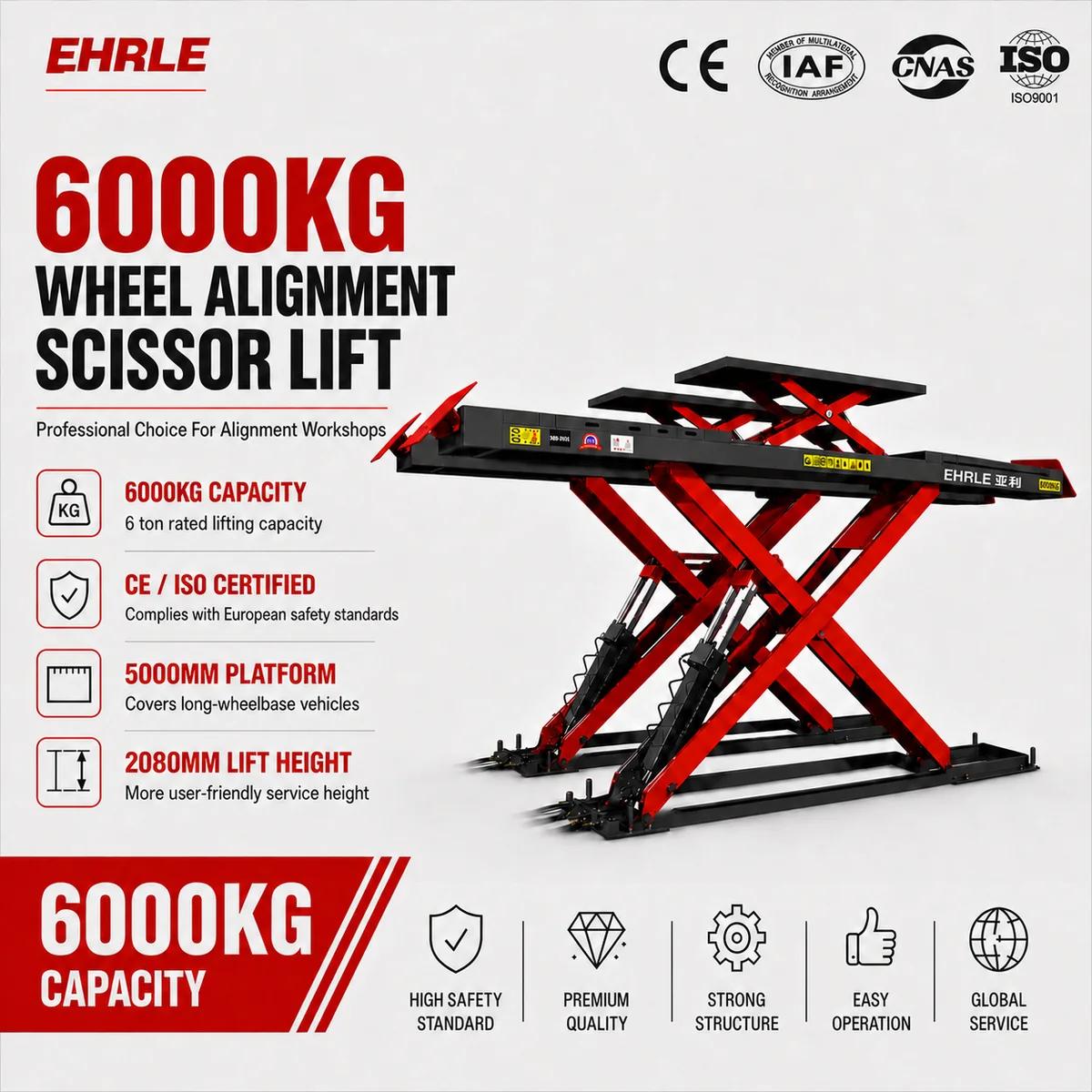

EHRLE EH-600 6T Alignment Scissor Lift
A 6,000 kg main lift with 5,000 × 670 mm runways and a separately rated 4,000 kg secondary lift. Compare platform geometry and lifting heights for your alignment bay.
- Secondary Jack Lifting Capacity
- 4000kg
- Main Lifting Capacity
- 6000kg
- Weight Capacity (tons)
- 6 ton
Request the model drawing, electrical configuration, packing details and applicable documents with your quotation.
View all specifications ↓DESIGNED FOR THE TASK
EH-600 equipment overview
An alignment bay needs a lift layout that works with both the vehicle and the measuring equipment. This 6T hydraulic scissor model provides 5,000 mm platforms for drive-on service, with a separate secondary lifting section. Its published applications include wheel alignment, chassis inspection and suspension work on compatible vehicles within the relevant load ratings.
The main lift is rated at 6,000 kg and the secondary jack at 4,000 kg, with listed lifting heights of 2,080 mm and 425 mm respectively. They are separate ratings for separate lifting functions. A 3 kW motor powers the hydraulic system; platform fit, alignment accessories and the chosen installation arrangement complete the specification for the bay.
Long platforms for alignment-bay assessment
Published platform dimensions are 5,000 mm long and 670 mm wide, with 900 mm spacing. Compare the layout with wheelbase, wheel track, tire placement and alignment-equipment clearance.
Defined main lift height and hydraulic power
The model specification lists 2,080 mm main lifting height, 330 mm minimum height and a 3 kW hydraulic drive. Minimum height belongs in the vehicle-approach and installation assessment.
Wheel alignment with matched equipment
Use the lift as a candidate for a dedicated alignment bay where runway level, turntable and slip-plate arrangement, sensor or camera sight lines and the intended vehicle range can be evaluated together. The lift alone does not establish aligner compatibility.
Chassis and suspension service
The model specification lists chassis inspection and suspension work, with the secondary jack offering a distinct lifting function. A vehicle accepted by the 6T main lift is not automatically within the secondary jack's 4T rating or support-point limits.
A CLOSER LOOK
Equipment and configuration details

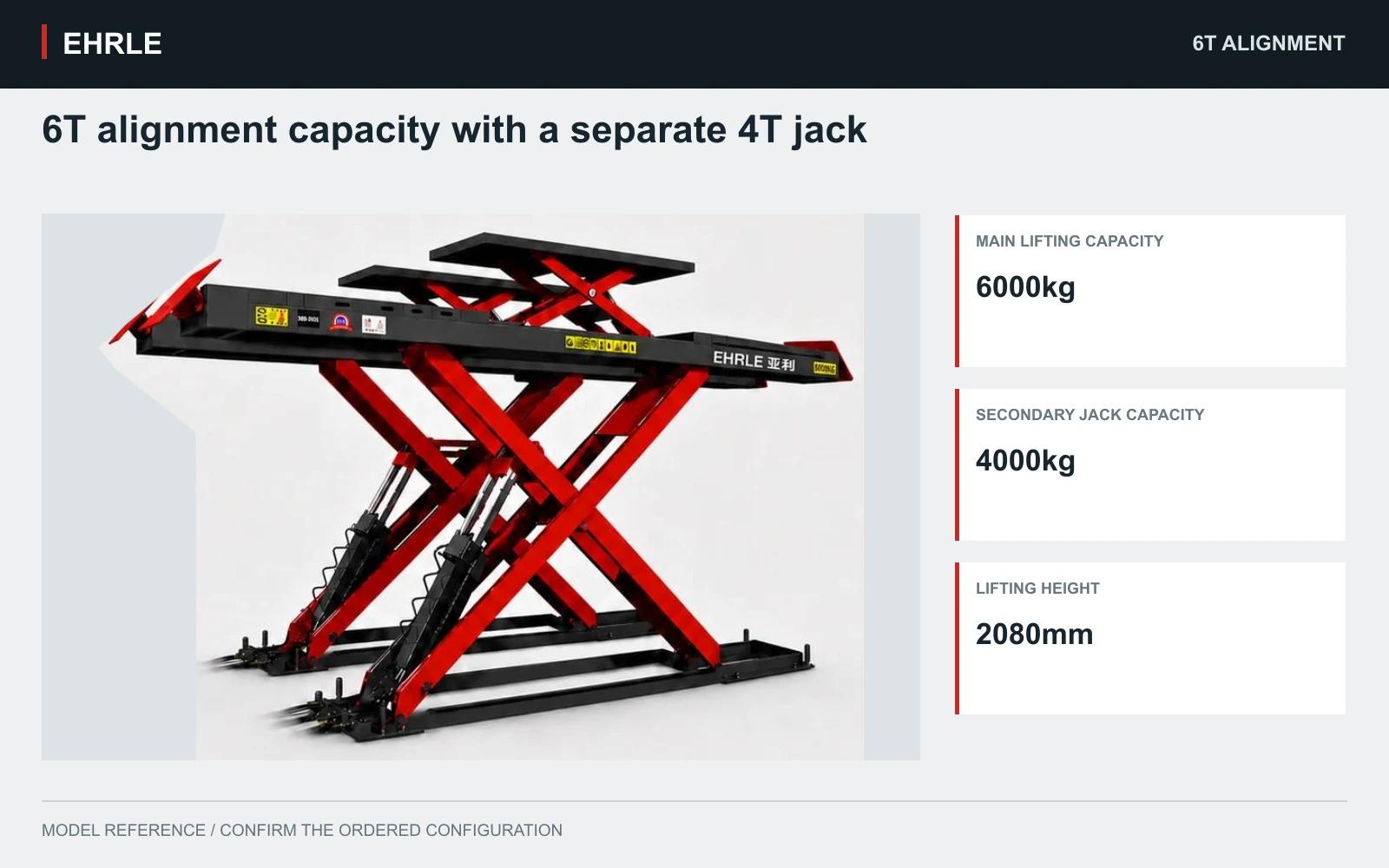

6T alignment capacity with a separate 4T jack
Main lift: 6,000 kg · Secondary jack: 4,000 kg

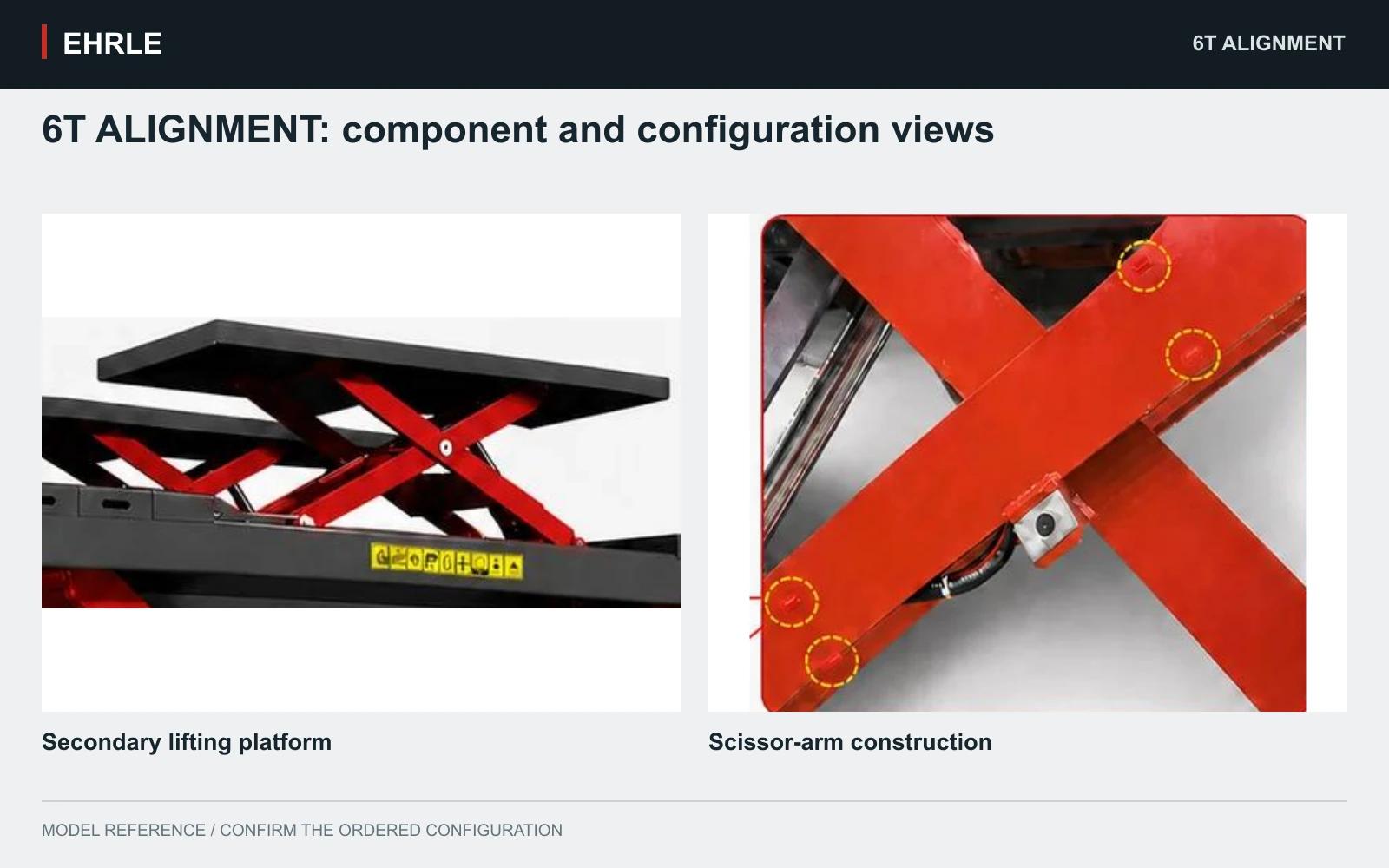

6T ALIGNMENT: component and configuration views
Secondary lifting platform; scissor-arm construction. Confirm supplied parts and options for the selected configuration.

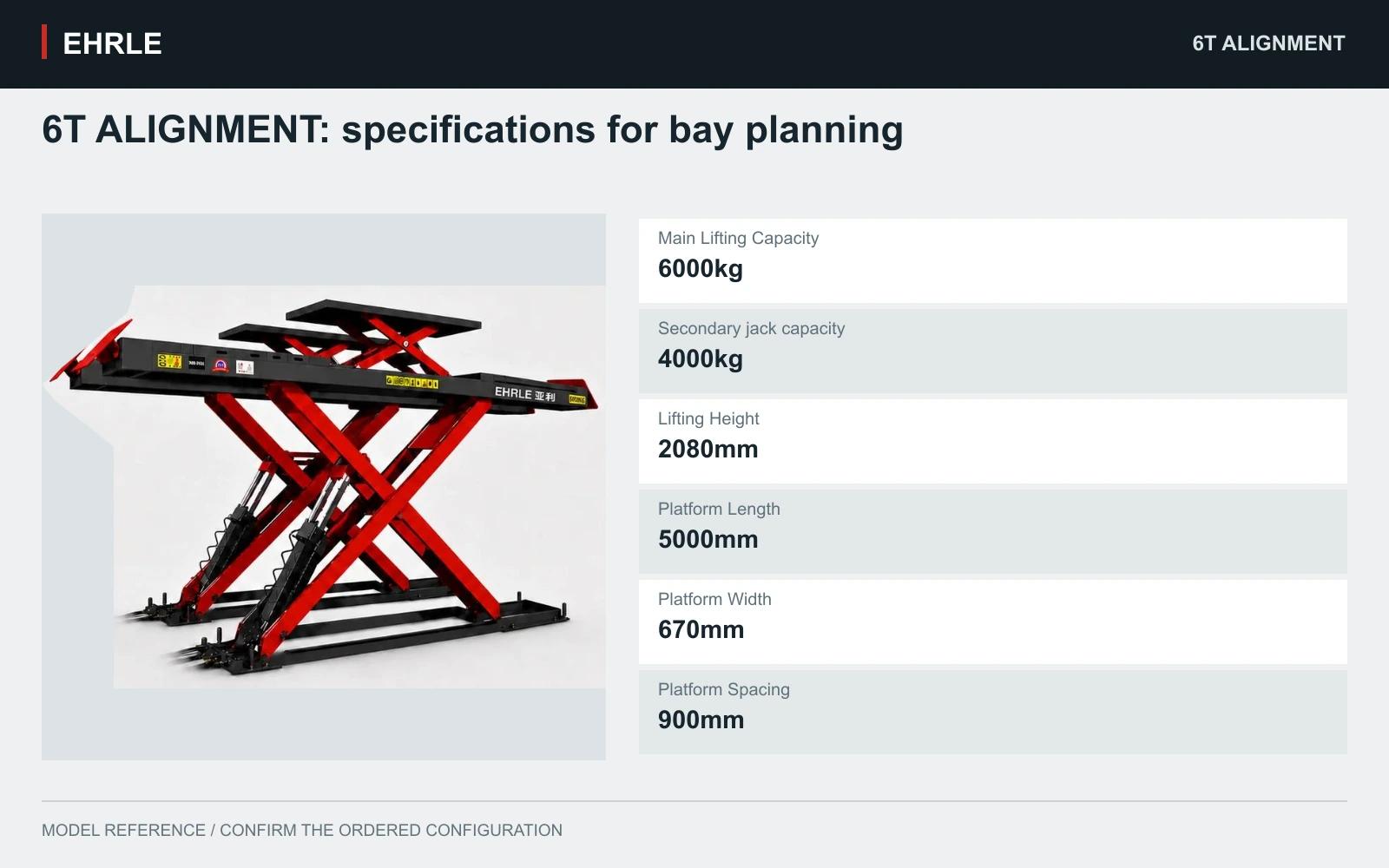

6T ALIGNMENT: specifications for bay planning
Main Lifting Capacity: 6000kg; Secondary jack capacity: 4000kg; Lifting Height: 2080mm; Platform Length: 5000mm; Platform Width: 670mm; Platform Spacing: 900mm.
TECHNICAL DATA
EH-600 specifications
Compare the stated dimensions and ratings with your vehicle range, available space and site power supply. Supply options refer to the configuration selected when ordering.
| Model Number | EH-600 |
|---|---|
| Type | Scissor Lift |
| Secondary Jack Lifting Capacity | 4000kg |
| Main Lifting Capacity | 6000kg |
| Weight Capacity (tons) | 6 ton |
| Lifting Height | 2080mm |
| Secondary Jack Lifting Height | 425mm |
| Minimum Height | 330mm |
| Platform Width | 670mm |
| Platform Length | 5000mm |
| Platform Spacing | 900mm |
| Motor Power | 3Kw |
| Drive Mode | Hydraulic |
| Rise/Fall Time | 50S |
| Place Of Origin | CN,Guangdong |
| Maximum Lift Height (in.) | 80-82in |
| Warranty | 18 months |
| Design | SCISSOR |
SPECIFY YOUR LIFT
Configuration and installation planning
- Listed main specification: 6,000 kg capacity, 5,000 × 670 mm platforms, 900 mm platform spacing, 2,080 mm lifting height and 330 mm minimum height.
- The model specification lists a 4,000 kg secondary jack with 425 mm lifting height. Specify its supplied scope and support arrangement explicitly in the quotation.
- Turnplates, slip plates and alignment-machine integration are configuration questions; the available specifications do not establish a universal included accessory package.
- Installation type, floor or pit layout, supply voltage, phase and frequency require the selected configuration documents. A 3 kW motor rating alone does not identify the electrical supply.
For available documents, see Certificates. Check the holder, product model and document scope for the selected equipment.
Discuss this configuration →MODEL QUESTIONS
Questions about EH-600
Can the 4T secondary jack lift the same load as the 6T main lift?
No. The main platforms are rated at 6,000 kg, while the secondary jack is listed at 4,000 kg. The load applied to the jack and its support-point arrangement must satisfy that separate rating. The two capacity figures must not be added together or treated as interchangeable.
Do 5,000 mm platforms establish a 5,000 mm vehicle wheelbase limit?
No. Platform length is not a declared vehicle-wheelbase range. Usable tire positions, turntable and slip-plate locations, approach geometry and the selected alignment equipment all affect fit. The available specifications provide 5,000 × 670 mm platforms and 900 mm spacing, but no approved universal wheelbase range.
Are the 2,080 mm and 425 mm lifting heights a combined rating?
The model specification lists 2,080 mm for the main lift and 425 mm for the secondary jack. They describe separate mechanisms. Their combined usable height or permitted operating sequence should come from the supplied operating documents; this page does not publish a calculated combined lifting height.
Is this 6T alignment lift necessarily installed in a floor pit?
The current record lists a 330 mm minimum height and asks for the selected floor or pit arrangement, but does not establish one mandatory installation type. Obtain the configuration-specific drawing before choosing the approach, recesses and service routing. Do not infer an in-ground layout from a generic alignment-lift search term.
