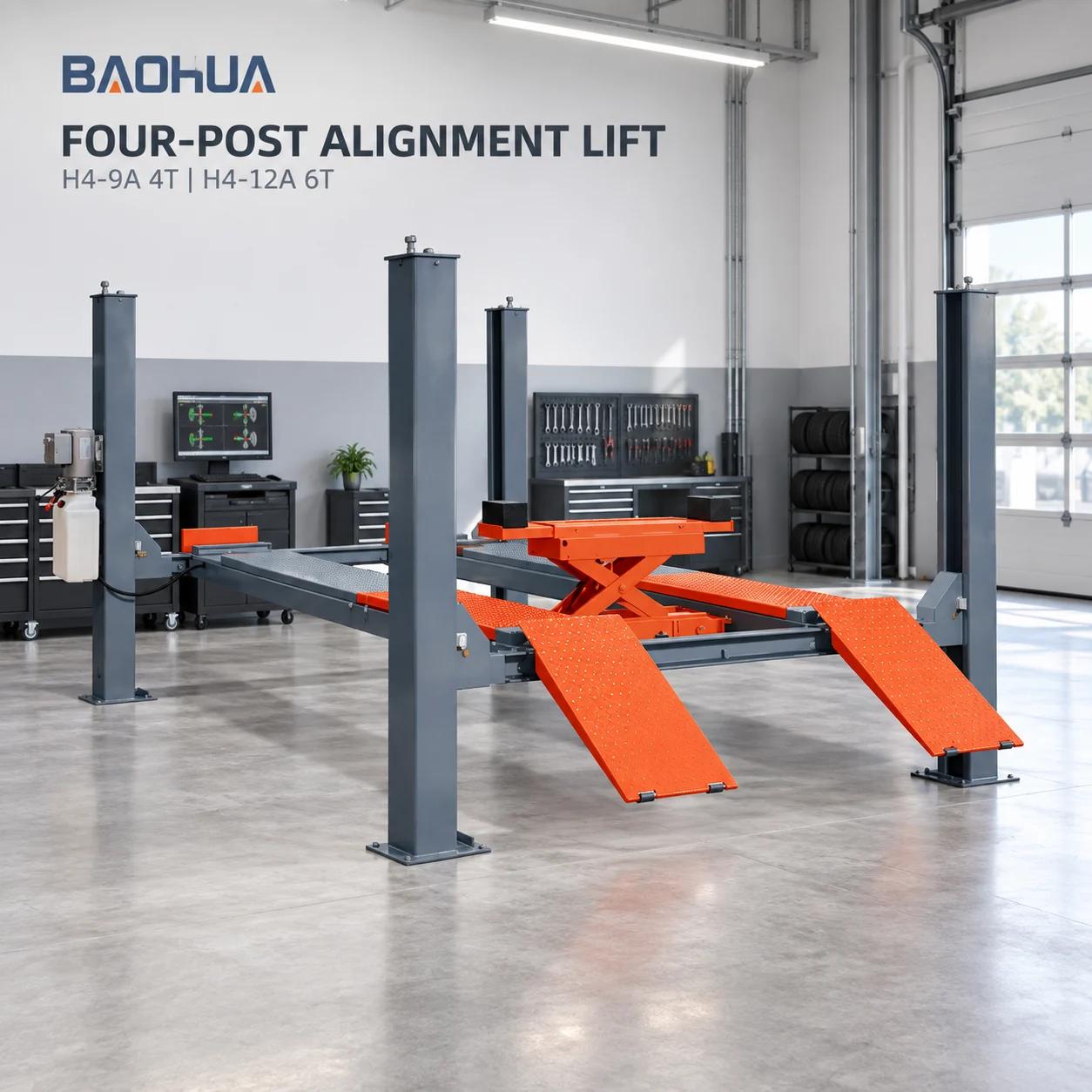

EHRLE H4-9A / H4-12A Four-Post Alignment Lifts
Choose H4-9A for 4T capacity and 4,600 mm runways, or H4-12A for 6T and 5,700 mm runways. Both list 1,800 mm lifting height; a rolling jack is optional.
- H4-9A rated capacity
- 4,000 kg
- H4-12A rated capacity
- 6,000 kg
- Lifting height (both models)
- 1,800 mm
Request the model drawing, electrical configuration, packing details and applicable documents with your quotation.
View all specifications ↓DESIGNED FOR THE TASK
H4-9A / H4-12A equipment overview
Choose between these four-post models by vehicle dimensions and bay space as well as capacity. The H4-9A pairs a 4,000 kg rating with 500 mm-wide runways, while the H4-12A pairs 6,000 kg with wider 650 mm runways. Their runway lengths are 4,600 mm and 5,700 mm respectively, excluding the approach ramps, so the complete installation needs a larger footprint.
Both models use a 2.2 kW hydraulic power unit, steel-cable and pulley lifting transmission, mechanical locking and single-point manual release. Adjustable turntable positions and rear slip plates support alignment work. Specify the measurement equipment and any optional rolling jack separately; the four-post platform supports the vehicle, while secondary lifting requires its own approved load rating and support arrangement.
Shared lifting mechanism
Both list 1,800 mm lifting height and 2.2 kW motor power. The design uses an under-mounted single cylinder, steel cables and pulleys, mechanical locking and single-point manual release.
Alignment with optional secondary lifting
The design includes adjustable turntable positions and rear slip plates. A rolling jack is optional; its capacity, adapters and supplied quantity belong in the order specification.
Passenger-car and light-commercial alignment
Select the model whose capacity, runway length and runway width match the intended vehicles and alignment-system layout. The larger H4-12A is not a universal fit for every vehicle below six tonnes.
Underbody service with a drive-on platform
The runways support suitable inspection and service work. Add the appropriate optional rolling jack where wheel-free work is required, using its own rated load and approved lifting points.
A CLOSER LOOK
Equipment and configuration details
H4 series / Four-post alignment

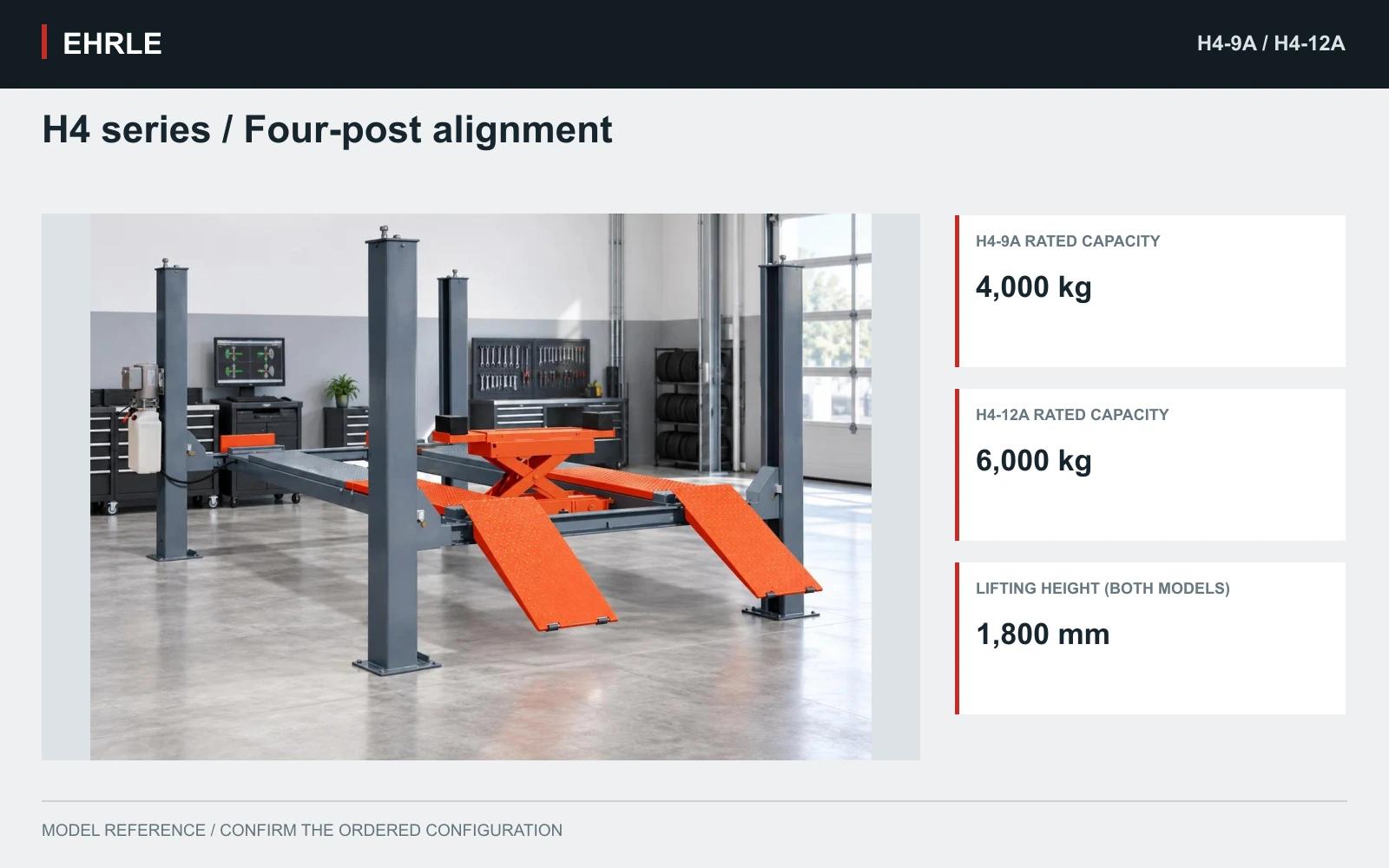

H4-9A: 4,000 kg. H4-12A: 6,000 kg. Both lift to 1,800 mm.
H4-9A / H4-12A: component and configuration views

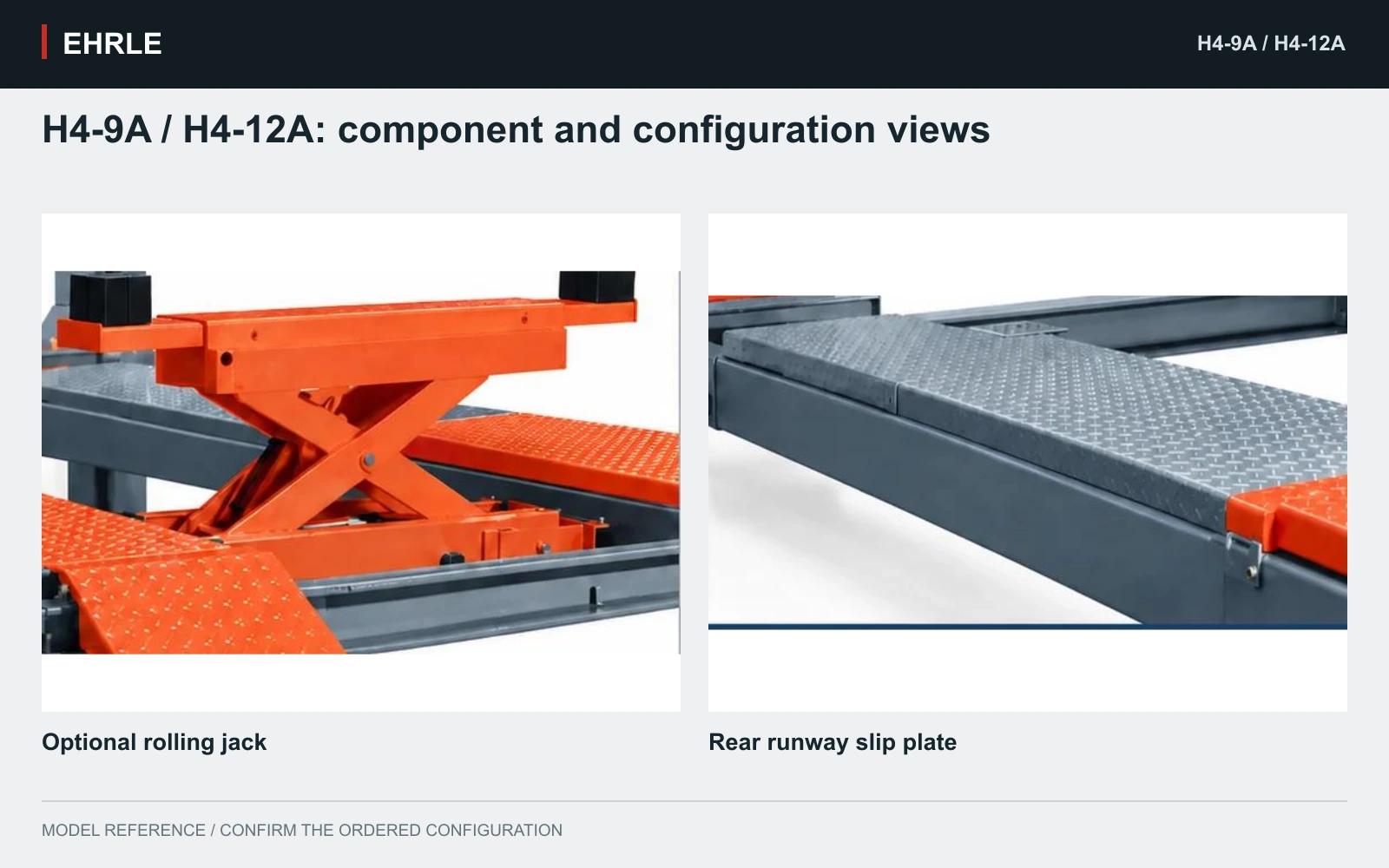

Optional rolling jack; rear runway slip plate. Confirm supplied parts and options for the selected configuration.
H4-9A / H4-12A: specifications for bay planning

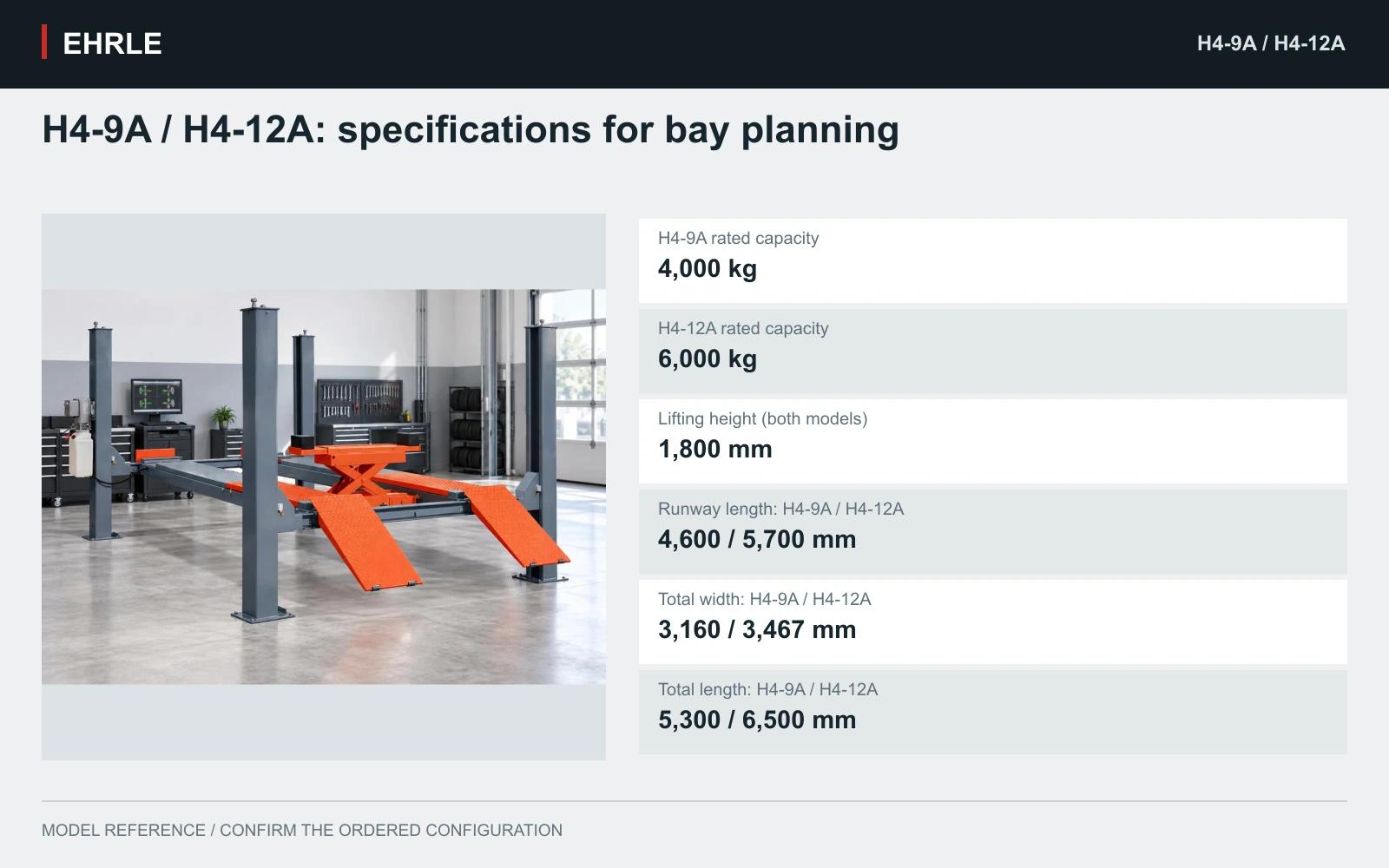

H4-9A rated capacity: 4,000 kg; H4-12A rated capacity: 6,000 kg; Lifting height (both models): 1,800 mm; Runway length: H4-9A / H4-12A: 4,600 / 5,700 mm; Total width: H4-9A / H4-12A: 3,160 / 3,467 mm; Total length: H4-9A / H4-12A: 5,300 / 6,500 mm.
TECHNICAL DATA
H4-9A / H4-12A specifications
Compare the stated dimensions and ratings with your vehicle range, available space and site power supply. Supply options refer to the configuration selected when ordering.
| H4-9A rated capacity | 4,000 kg |
|---|---|
| H4-12A rated capacity | 6,000 kg |
| Lifting height (both models) | 1,800 mm |
| H4-9A / H4-12A runway length (excluding ramps) | 4,600 / 5,700 mm |
| H4-9A / H4-12A runway width | 500 / 650 mm |
| Inner runway spacing (listed configuration) | 1,000 mm |
| Motor power (both models) | 2.2 kW |
| H4-9A / H4-12A total width | 3,160 / 3,467 mm |
| H4-9A / H4-12A total length | 5,300 / 6,500 mm |
| Post height (both models) | 1,950 mm |
| H4-9A / H4-12A width between columns | 2,743 / 3,050 mm |
| H4-9A supply options | 220 V / 380 V, 3-phase, 50 / 60 Hz; specify ordered supply |
| H4-12A supply options | 110 V / 220 V, single-phase, 50 / 60 Hz; specify ordered supply |
| Rolling jack | Optional; capacity and supplied accessories to be confirmed |
