Two-level vehicle parking
The BH88 is designed as a four-post parking lift with a 2,700 kg rated capacity. Select the elevated vehicle and parking arrangement within the equipment's load and clearance limits.
Select a view below. Click the main image to open it full size.Product images illustrate the model and may use a composed workshop background. Confirm the supplied configuration, finish and accessories in your quotation.
EHRLE / VEHICLE LIFTS

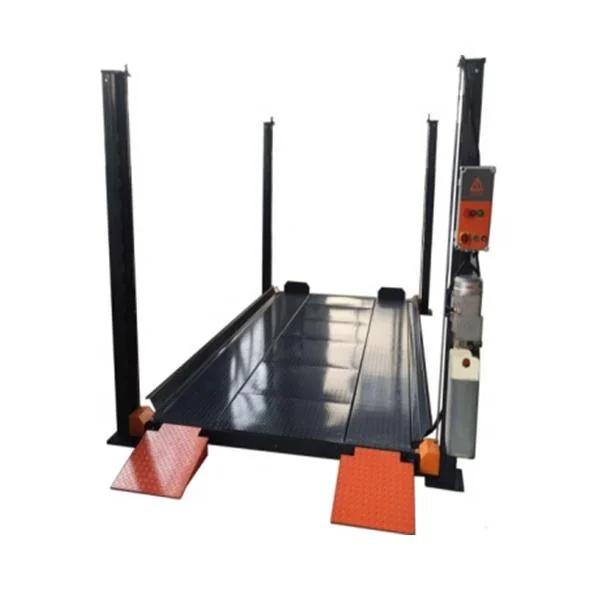

EHRLE BH88 2.7T Four-Post Parking Lift
A four-post double-parking lift with a 4,700 mm platform and 2,000 mm clear lifting height. Match both vehicles and the available building height to the installation layout.
- Lifting Capacity
- 2700 kg
- Clear Lifting Height
- 2000 mm
- Platform Length
- 4700 mm
Request the model drawing, electrical configuration, packing details and applicable documents with your quotation.
View all specifications ↓DESIGNED FOR THE TASK
BH88 equipment overview
For a garage or vehicle-storage project, the BH88 adds an elevated parking position within a four-post structure. The rated lifting capacity is 2,700 kg, and the equipment measures 5,400 × 2,700 × 2,100 mm overall. Treat these as equipment dimensions when preparing a layout, then allocate vehicle approach, door access and the clearances needed above and below the platform.
The lift uses a double-cylinder hydraulic arrangement, manual lock release and a 2.2 kW motor. The documented lifting and lowering times are approximately 50 and 40 seconds. Platform length, platform outer width and building height should be reviewed with the actual pair of vehicles: the listed 3,600 mm minimum site height does not guarantee clearance for every combination.
Clearly separated platform and overall dimensions
The platform is 4,700 mm long with a 1,950 mm outer width. Overall equipment dimensions are 5,400 × 2,700 × 2,100 mm.
Manual release hydraulic operation
The documented arrangement uses manual release, a 2.2 kW aluminium-housing motor and 24 V control output. Approximate raising and lowering times are 50 and 40 seconds.
Garage and vehicle-storage parking
Consider the BH88 for two-level storage where the upper vehicle is within the 2,700 kg rating and the building accommodates both vehicle envelopes and lift movement.
Dealership or workshop storage areas
The parking configuration can serve a vehicle-storage area with suitable access and floor conditions. A parking lift specification does not establish wheel-alignment or wheel-free service capability.
A CLOSER LOOK
Equipment and configuration details

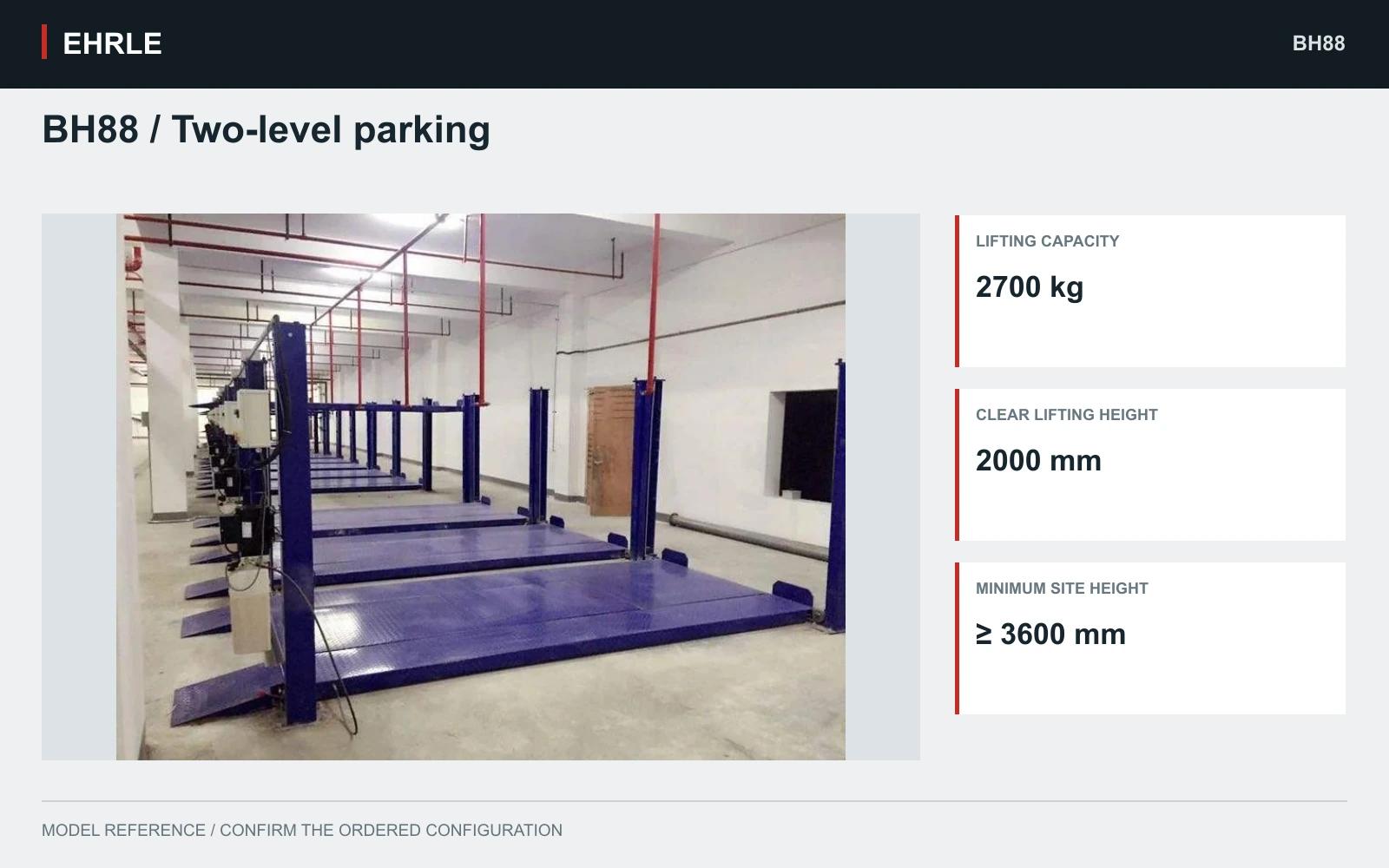

BH88 / Two-level parking
Four-post hydraulic vehicle stacker with a 2,700 kg rated capacity.

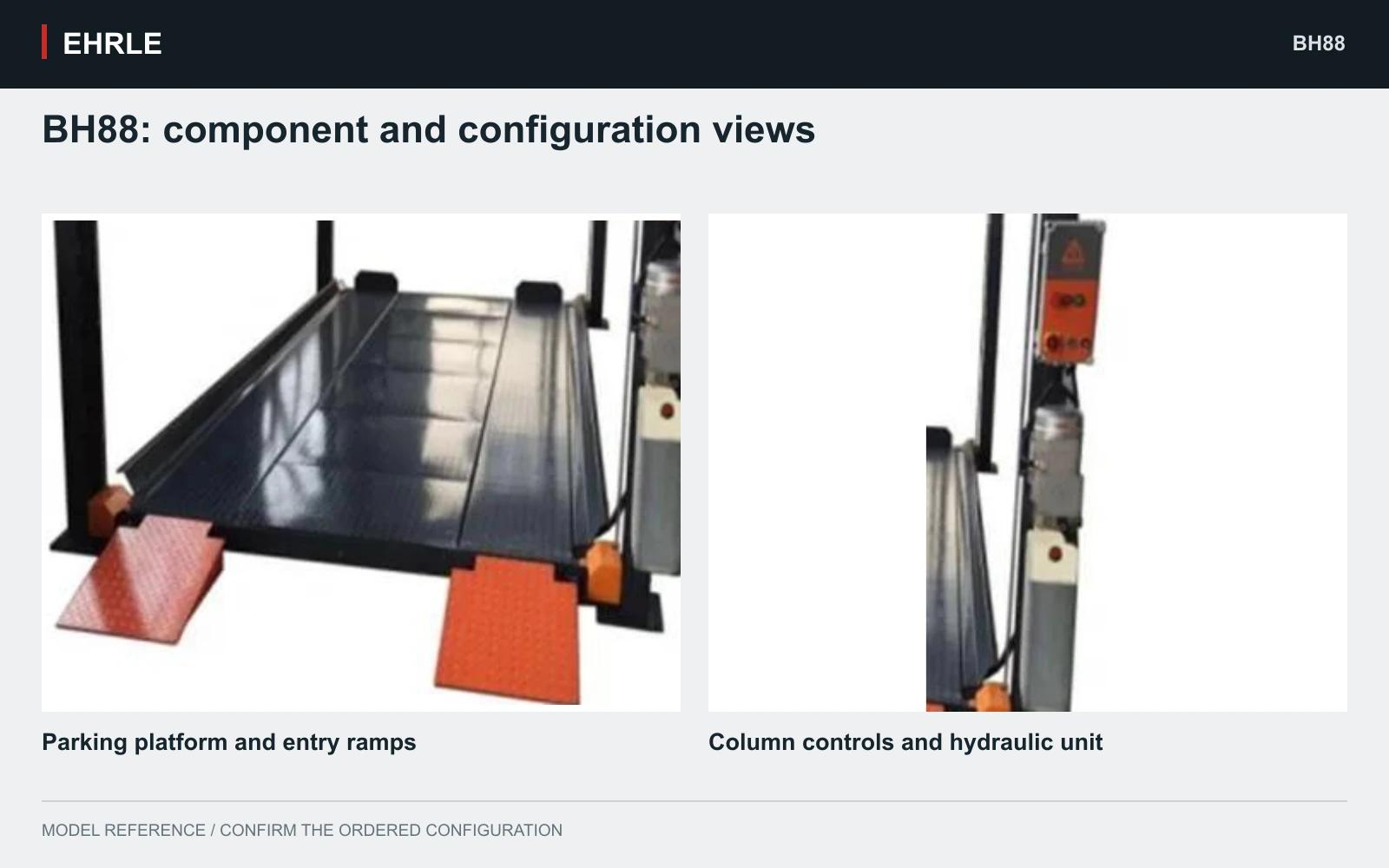

BH88: component and configuration views
Parking platform and entry ramps; column controls and hydraulic unit. Confirm supplied parts and options for the selected configuration.

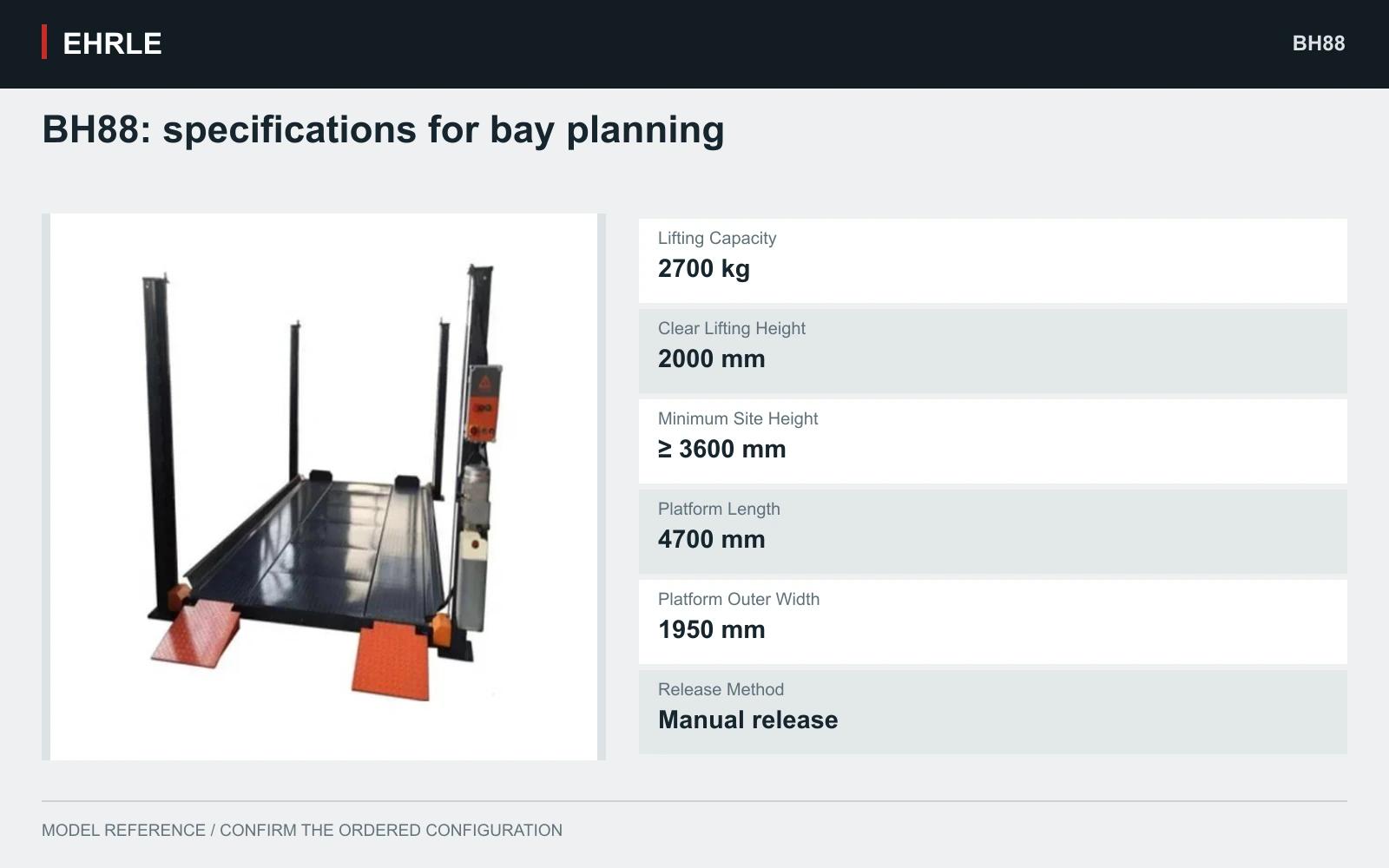

BH88: specifications for bay planning
Lifting Capacity: 2700 kg; Clear Lifting Height: 2000 mm; Minimum Site Height: ≥ 3600 mm; Platform Length: 4700 mm; Platform Outer Width: 1950 mm; Release Method: Manual release.
TECHNICAL DATA
BH88 specifications
Compare the stated dimensions and ratings with your vehicle range, available space and site power supply. Supply options refer to the configuration selected when ordering.
| Model Number | BH88 |
|---|---|
| Type | Double Cylinder Hydraulic Lift |
| Lifting Capacity | 2700 kg |
| Clear Lifting Height | 2000 mm |
| Minimum Site Height | ≥ 3600 mm |
| Lifting Time | Approximately 50 s |
| Lowering Time | Approximately 40 s |
| Platform Length | 4700 mm |
| Platform Outer Width | 1950 mm |
| Overall Dimensions | 5400 x 2700 x 2100 mm |
| Motor Power | 2.2 kW |
| Motor Housing | Aluminium housing |
| Input Voltage | 220 V / 380 V optional |
| Control Voltage | 24 V output |
| Release Method | Manual release |
| Manufacturing Process | CNC plasma cutting |
| Surface Treatment | Shot blasting and spray coating |
| Place Of Origin | CN,Guangdong |
| Color | Optional |
| Warranty | 3 Years |
| Design | Four Post |
SPECIFY YOUR LIFT
Configuration and installation planning
- Listed configuration: four-post, double-cylinder hydraulic parking lift with manual release.
- Electrical order choice: 220 V or 380 V input with a 2.2 kW motor and 24 V control output.
- Color is listed as optional; final finish follows the order.
- Site layout requires vehicle-specific upper and lower clearances in addition to the listed minimum 3,600 mm site height.
For available documents, see Certificates. Check the holder, product model and document scope for the selected equipment.
Discuss this configuration →MODEL QUESTIONS
Questions about BH88
Will a 3.6 m-high garage fit any two cars on the BH88?
The listed minimum site height is 3,600 mm, but both vehicle heights and the platform's movement envelope determine the actual fit. Review the intended pair of cars and the final parking layout before choosing the installation.
Is the BH88 1,950 mm width the full equipment width?
No. The 1,950 mm value is the platform's outer width. Overall equipment width is 2,700 mm. Neither value replaces a vehicle-specific check of tire placement, body clearance and door access.
Is the BH88 a four-post wheel-alignment lift?
The BH88 is documented for two-level parking and storage. For a four-post alignment bay, compare the H4-9A and H4-12A specifications, which describe alignment runways and a separately optional rolling jack.
How is the BH88 lowered after parking?
The listed release method is manual. Approximate lowering time is 40 seconds. Operation, lock engagement and the order of vehicle movement should follow the supplied parking-lift instructions.
COMPARE YOUR OPTIONS
Related lift models

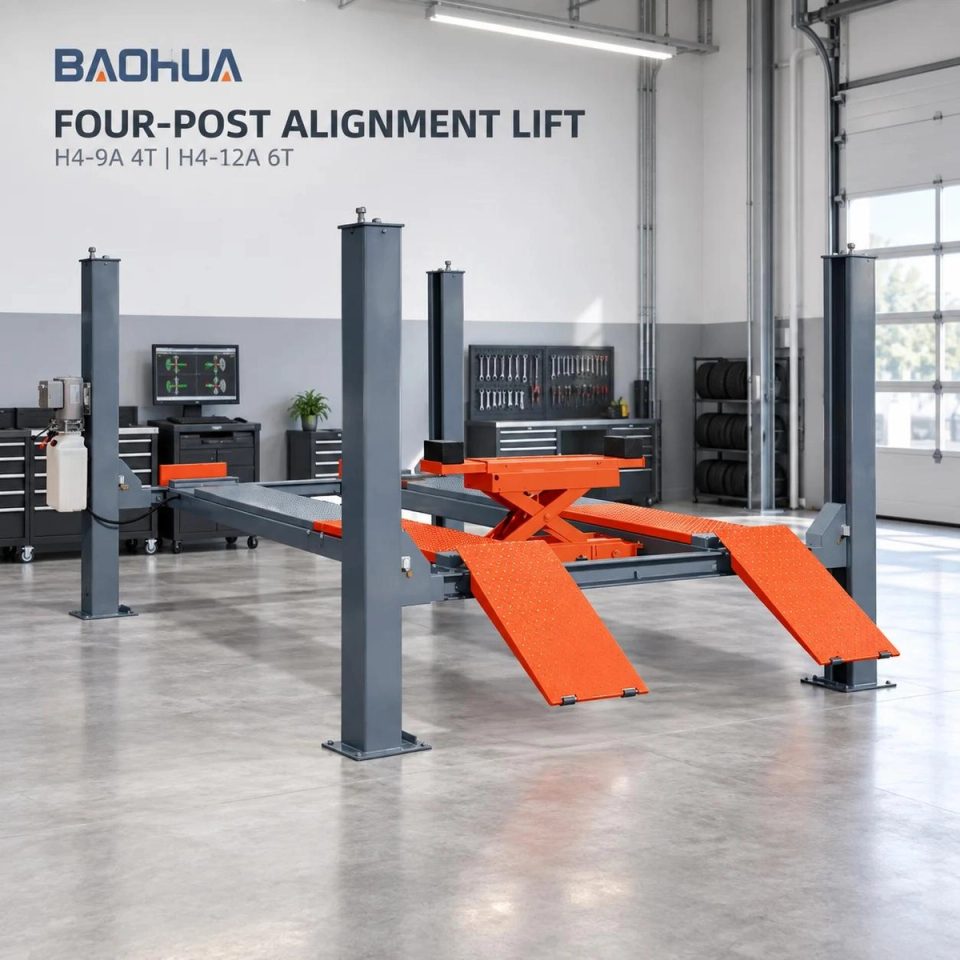

H4-9A / H4-12A Four-Post Alignment Lifts
Choose H4-9A for 4T capacity and 4,600 mm runways, or H4-12A for 6T and 5,700 mm runways. Both list 1,800 mm lifting height; a rolling jack is optional.
View details →

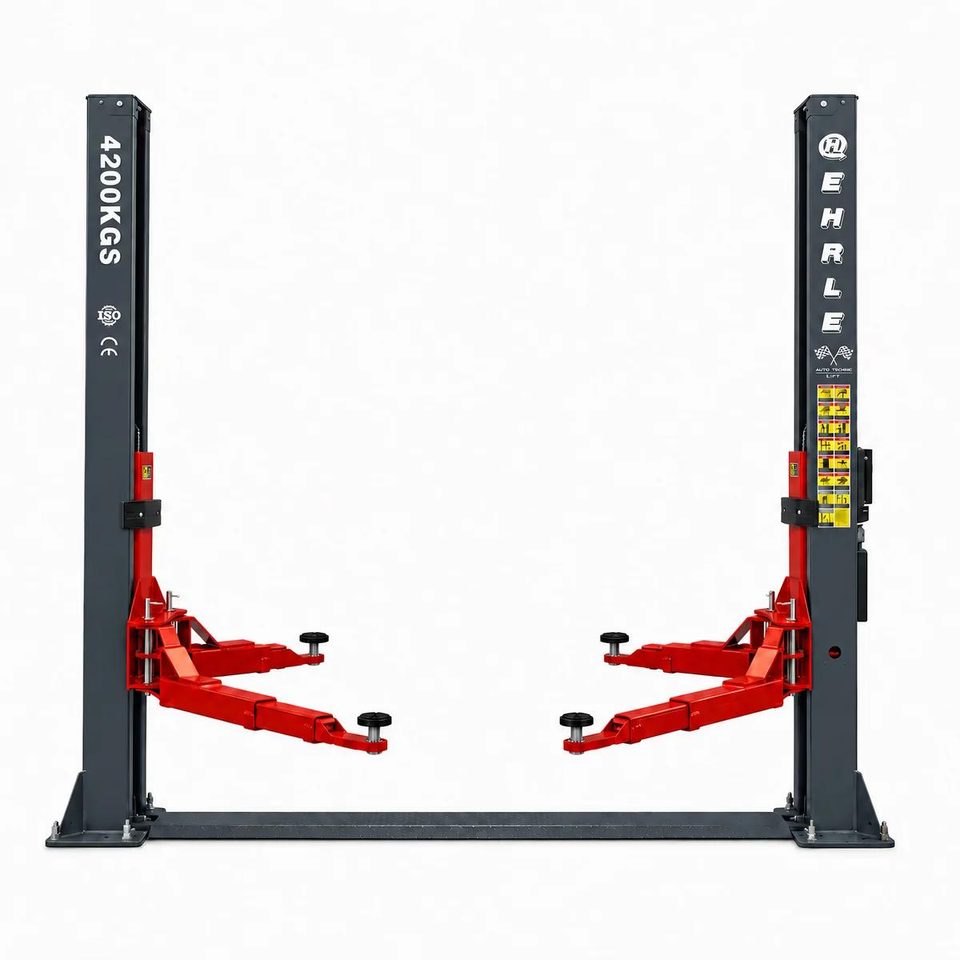

4200KG Two-Post Hydraulic Lift
