Two defined capacity and height combinations
6010B pairs a 3,000 kg rating with 1,000 mm maximum lifting height. 6010C pairs 4,000 kg with 1,200 mm. Both list 105 mm minimum height.
Select a view below. Click the main image to open it full size.Product images illustrate the model and may use a composed workshop background. Confirm the supplied configuration, finish and accessories in your quotation.
EHRLE / VEHICLE LIFTS
EHRLE 6010B / 6010C Portable Scissor Lifts

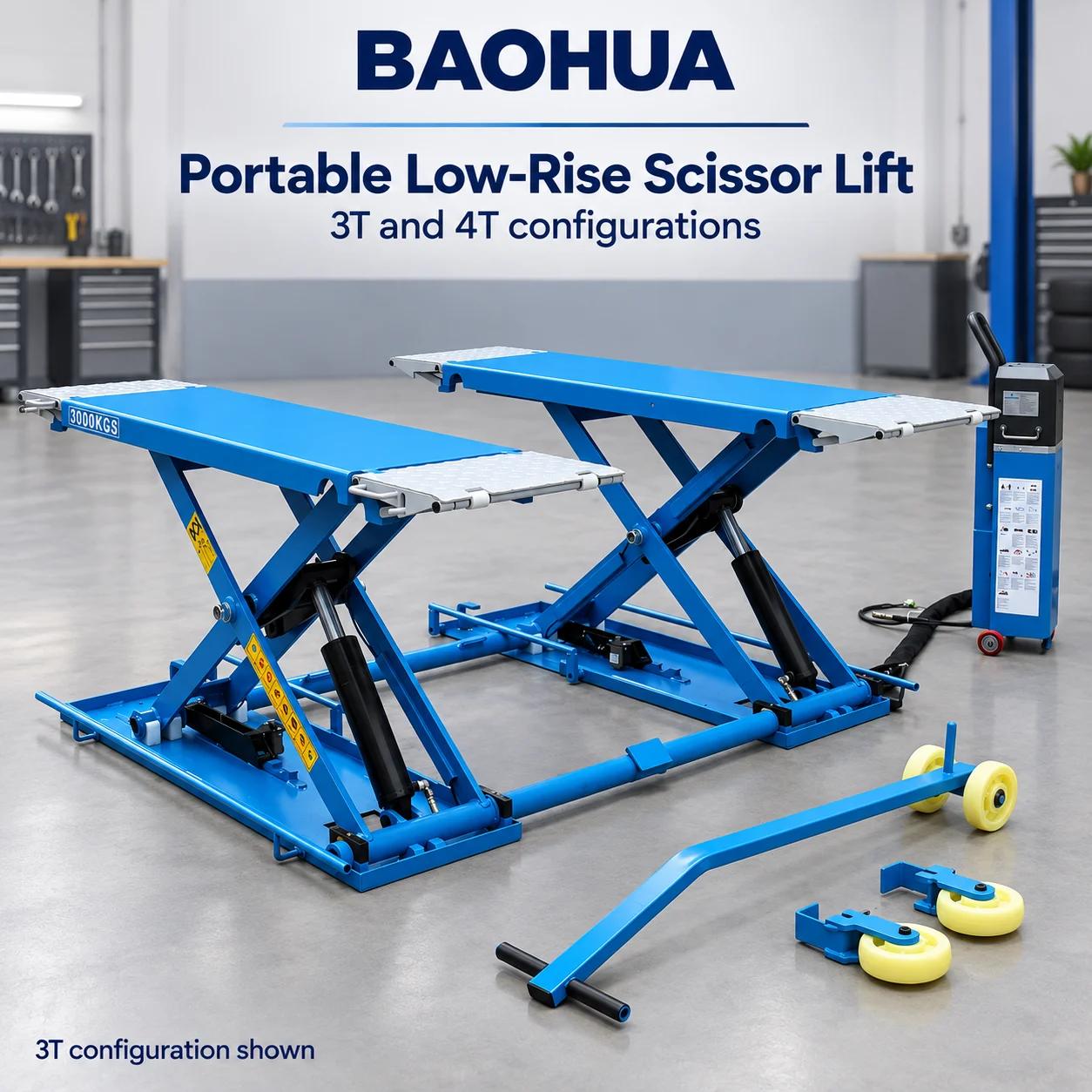

Choose the 3T 6010B or 4T 6010C for low-rise service. Both list a 105 mm minimum height; maximum lifting height and platform dimensions differ between the two models.
- 6010B rated capacity
- 3,000 kg
- 6010C rated capacity
- 4,000 kg
- 6010B maximum lifting height
- 1,000 mm
Request the model drawing, electrical configuration, packing details and applicable documents with your quotation.
View all specifications ↓DESIGNED FOR THE TASK
6010B / 6010C equipment overview
The 6010B and 6010C support compatible tire, brake and low-rise inspection work using paired platforms. Their capacity ratings apply to the complete lift. They share a listed 1.5 kW electro-hydraulic drive and 24 V controls, but differ in load rating, maximum height and platform dimensions. They should be ordered as separate model configurations.
The 6010B platforms are 1,420 mm long, extending to 2,028 mm, and 460 mm wide each. The 6010C increases these dimensions to 1,570 mm, 2,175 mm extended and 530 mm wide. A removable mobility kit supports repositioning only when the lift is unloaded and fully lowered; it does not turn either model into a vehicle transporter.
Different platforms for different support-point layouts
6010B platforms measure 1,420–2,028 × 460 mm each; 6010C platforms measure 1,570–2,175 × 530 mm each. The length ranges represent the base and extended arrangements.
Electric release with an optional pneumatic version
The installation reference specifies electric lock release as standard and a pneumatic option by order. Both models use an electro-hydraulic mechanism, a listed 1.5 kW motor and 24 V controls.
Tire and brake service
The low-rise platforms are intended for compatible passenger-car tire and brake tasks. Choose the model using load distribution, manufacturer-approved lifting points and pad access, as well as its complete-lift capacity.
Low-rise inspection with flexible placement
Workshops can assess the lift for low-rise inspections and repositioning between suitable work areas. Movement is limited to an unloaded, fully lowered lift; this arrangement is not a replacement for full-rise underbody access.
A CLOSER LOOK
Equipment and configuration details

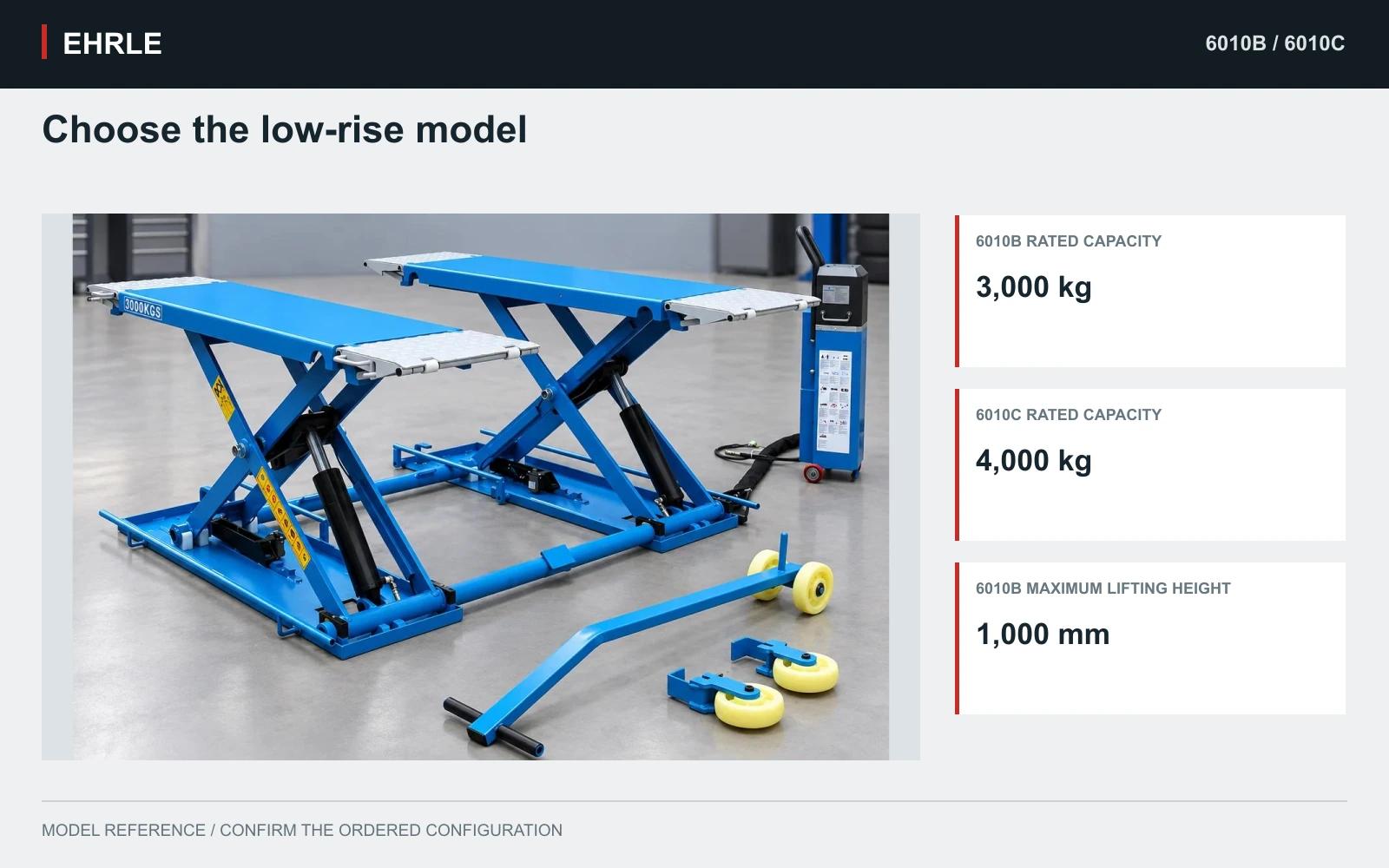

Choose the low-rise model
6010B: 3,000 kg / 1,000 mm · 6010C: 4,000 kg / 1,200 mm

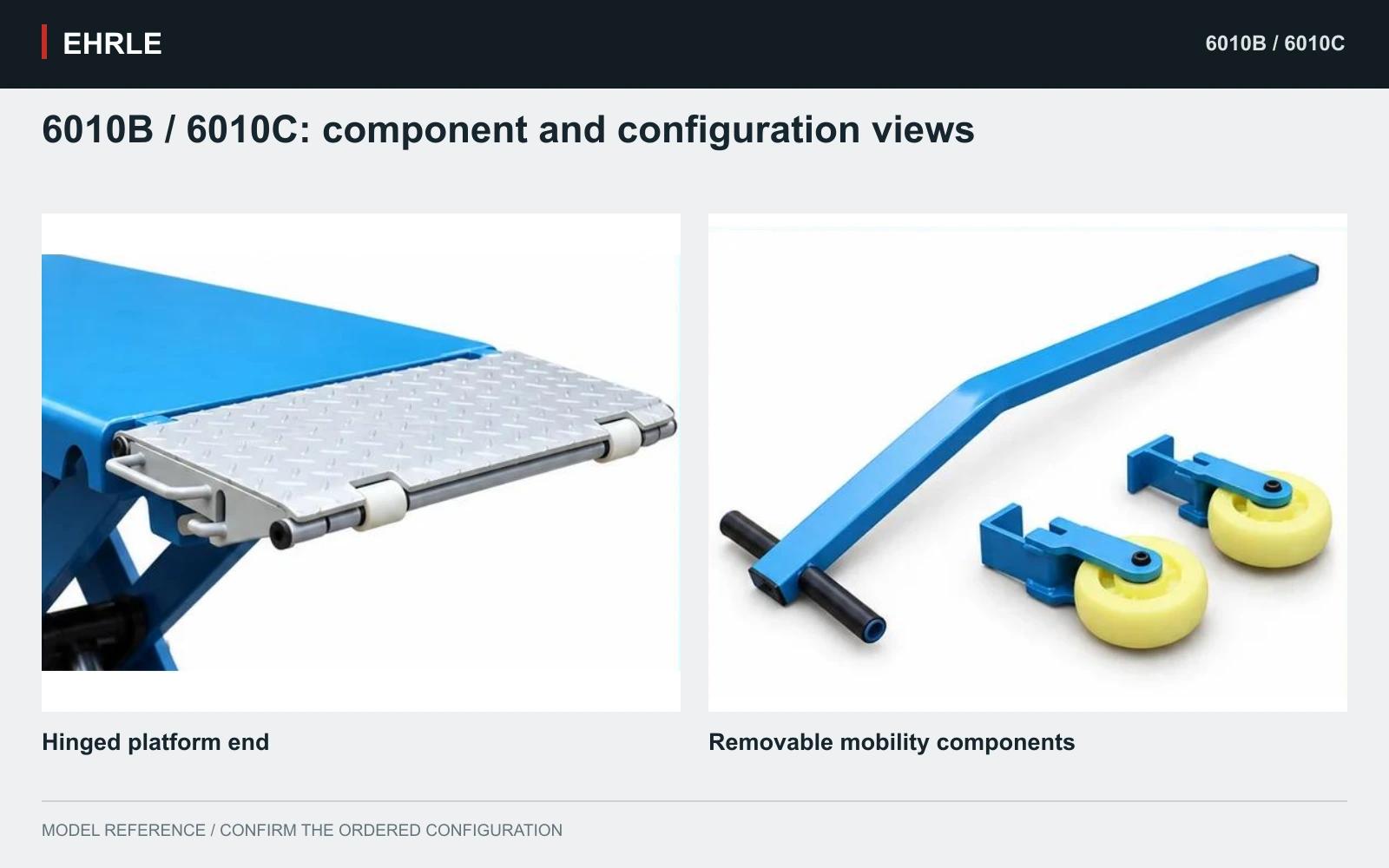

6010B / 6010C: component and configuration views
Hinged platform end; removable mobility components. Confirm supplied parts and options for the selected configuration.

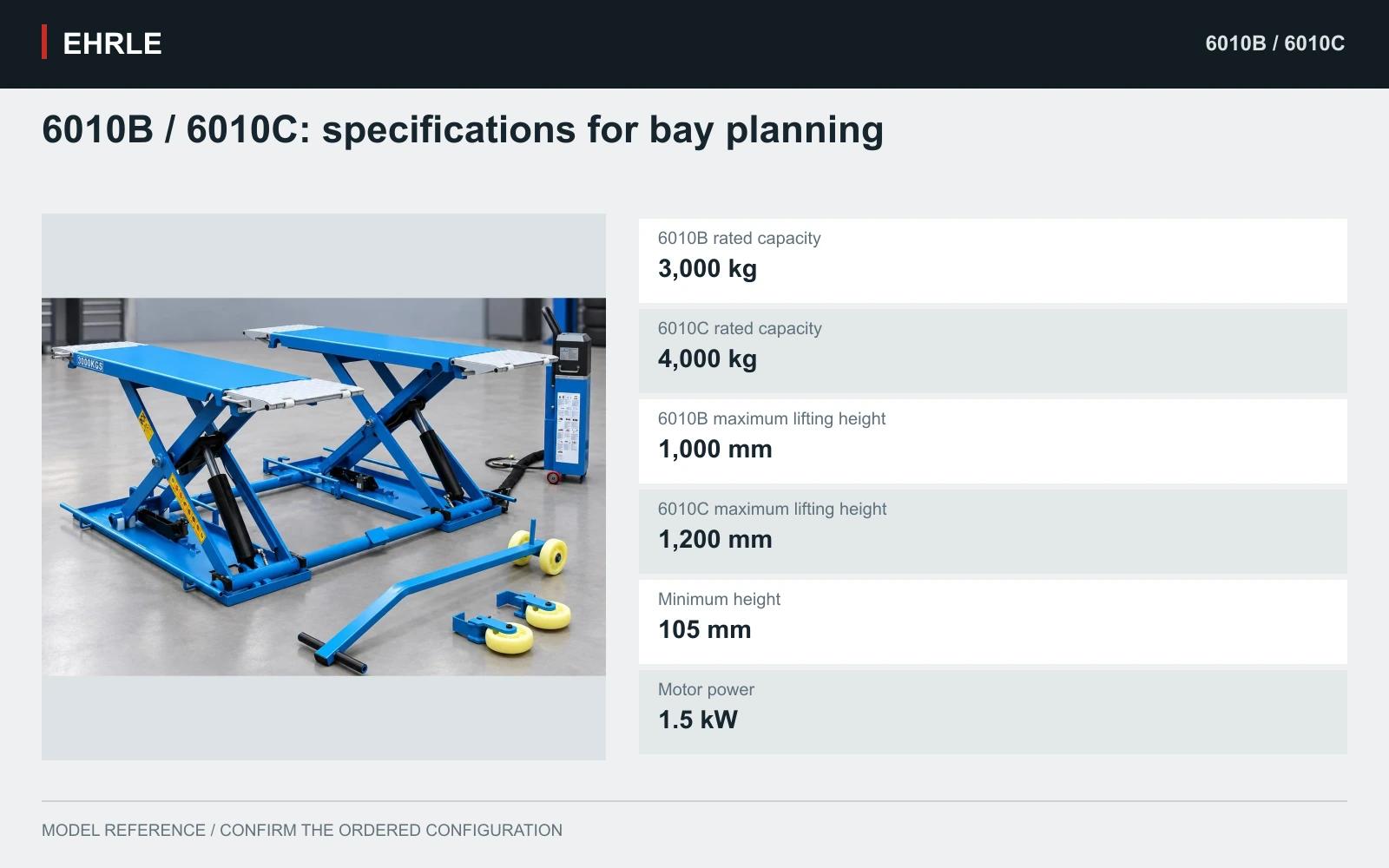

6010B / 6010C: specifications for bay planning
6010B rated capacity: 3,000 kg; 6010C rated capacity: 4,000 kg; 6010B maximum lifting height: 1,000 mm; 6010C maximum lifting height: 1,200 mm; Minimum height: 105 mm; Motor power: 1.5 kW.
TECHNICAL DATA
6010B / 6010C specifications
Compare the stated dimensions and ratings with your vehicle range, available space and site power supply. Supply options refer to the configuration selected when ordering.
| 6010B rated capacity | 3,000 kg |
|---|---|
| 6010C rated capacity | 4,000 kg |
| 6010B maximum lifting height | 1,000 mm |
| 6010C maximum lifting height | 1,200 mm |
| Minimum height | 105 mm |
| 6010B platform length | 1,420 mm; 2,028 mm with extensions |
| 6010C platform length | 1,570 mm; 2,175 mm with extensions |
| 6010B platform width (each) | 460 mm |
| 6010C platform width (each) | 530 mm |
| Motor power | 1.5 kW |
| Power supply | 110 V / 220 V / 380 V and 50 Hz / 60 Hz options; confirm phase and selected configuration |
| Control voltage | 24 V |
| Models | 6010B (3T) / 6010C (4T) |
| Drive mode | Electro-hydraulic |
| Lock release | Electric as standard; pneumatic option subject to order confirmation |
SPECIFY YOUR LIFT
Configuration and installation planning
- Specify 6010B for 3,000 kg / 1,000 mm maximum height, or 6010C for 4,000 kg / 1,200 mm; the platform dimensions change with the model.
- Electric lock release is standard. Pneumatic release is an order option, with its own air-supply requirements to be established.
- The model specification lists 110 V, 220 V and 380 V with 50 Hz or 60 Hz choices. Specify voltage, phase and frequency for the ordered unit rather than assuming automatic multi-voltage operation.
- Agree the support pads, removable mobility kit and supplied accessory list in the order; move the equipment only when unloaded and fully lowered.
For available documents, see Certificates. Check the holder, product model and document scope for the selected equipment.
Discuss this configuration →MODEL QUESTIONS
Questions about 6010B / 6010C
What changes when I choose 6010C instead of 6010B?
Capacity increases from 3,000 to 4,000 kg and maximum lifting height from 1,000 to 1,200 mm. Each platform changes from 1,420–2,028 × 460 mm on 6010B to 1,570–2,175 × 530 mm on 6010C. Both list a 105 mm minimum height.
Is the 3T or 4T rating available on each platform?
No. The 3,000 kg rating for 6010B and the 4,000 kg rating for 6010C apply to the complete lift. The vehicle must be supported using its approved lifting points and the selected pad arrangement, with suitable load distribution across the platforms.
Does every 6010B or 6010C need compressed air?
Electric lock release is the listed standard configuration. A pneumatic-release option is available by order and requires its own utility assessment. The source does not establish one air-pressure requirement for every version, so compressed-air needs should be tied to the release system selected.
Can the portable lift be moved while supporting a vehicle?
No. Remove the vehicle and fully lower the lift before using the removable mobility kit to reposition it. The available demonstration shows a 3,000 kg configuration operating unloaded; it does not demonstrate the 4T version under load.
