Surface-mounted double-scissor structure
The 6016 is a full-rise lift rated at 3,500 kg and designed for surface mounting. The selected installation drawing defines floor suitability, anchoring and access around the lift.
Select a view below. Click the main image to open it full size.Product images illustrate the model and may use a composed workshop background. Confirm the supplied configuration, finish and accessories in your quotation.
EHRLE / VEHICLE LIFTS
EHRLE 6016 3.5T Surface-Mounted Scissor Lift
A full-rise double-scissor lift with hinged platform ends, a separate control cabinet and wired pendant. Its surface-mounted layout supports planning for wheel-free service on compatible vehicles.
- Lifting Capacity
- 3500 kg
Request the model drawing, electrical configuration, packing details and applicable documents with your quotation.
View all specifications ↓DESIGNED FOR THE TASK
6016 equipment overview
Short lifting platforms make the 6016 a candidate for tire, brake, suspension and underbody work on compatible passenger vehicles. The platforms support approved vehicle lifting points rather than acting as long wheel-alignment runways. Its rated capacity is 3,500 kg, and the published construction uses two double-scissor assemblies with hinged platform end sections.
The 6016 is surface-mounted, unlike the recessed 6105B. Installation planning therefore starts with the suitable floor, anchoring, vehicle approach and service routing around the platforms. The source identifies 24 V controls, a separate cabinet and a wired pendant, while exact platform dimensions, maximum and minimum lifting heights and motor power remain configuration details to obtain before installation.
Short platforms with hinged ends
Twin short platforms and hinged end sections support model-specific vehicle positioning. Match the platform and pad arrangement to approved lifting points instead of treating this as an alignment-runway lift.
Separate operating station
Electro-hydraulic lifting uses a 24 V control system with a separate control cabinet and wired pendant. Leave room for the operating station and its service connections in the bay layout.
Wheel-free tire and brake work
The short-platform arrangement supports compatible tire and brake service when the approved lifting points can be reached with the specified pads or adapters. Vehicle mass and load distribution remain limited by the 3,500 kg rating.
Suspension and underbody access
The source identifies suspension and underbody service as applications. Assess access to the intended work area around the supporting platforms; vehicles with incompatible lifting points or obstructed support areas require a different solution.
A CLOSER LOOK
Equipment and configuration details

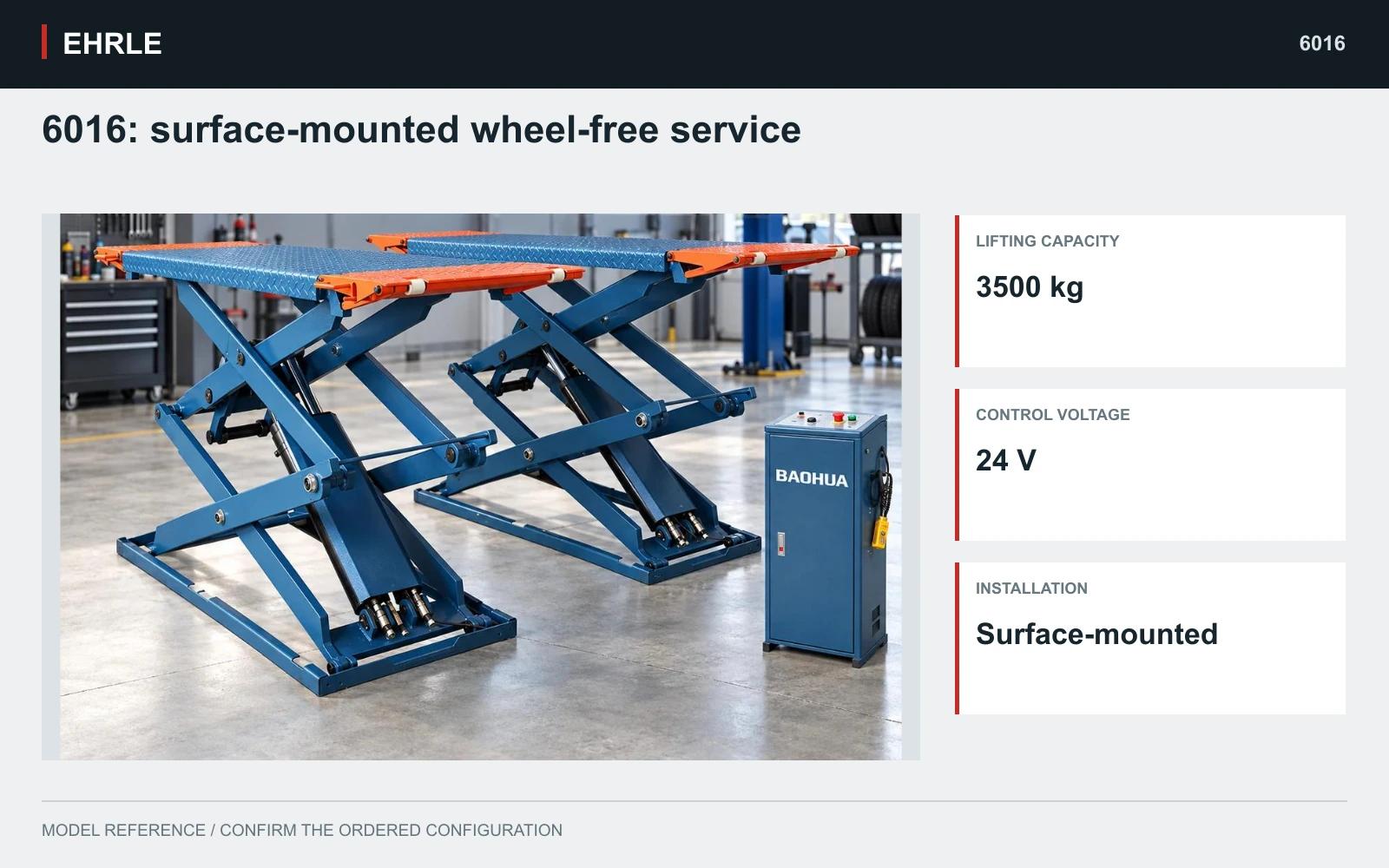

6016: surface-mounted wheel-free service
3,500 kg capacity · Full-rise double-scissor layout

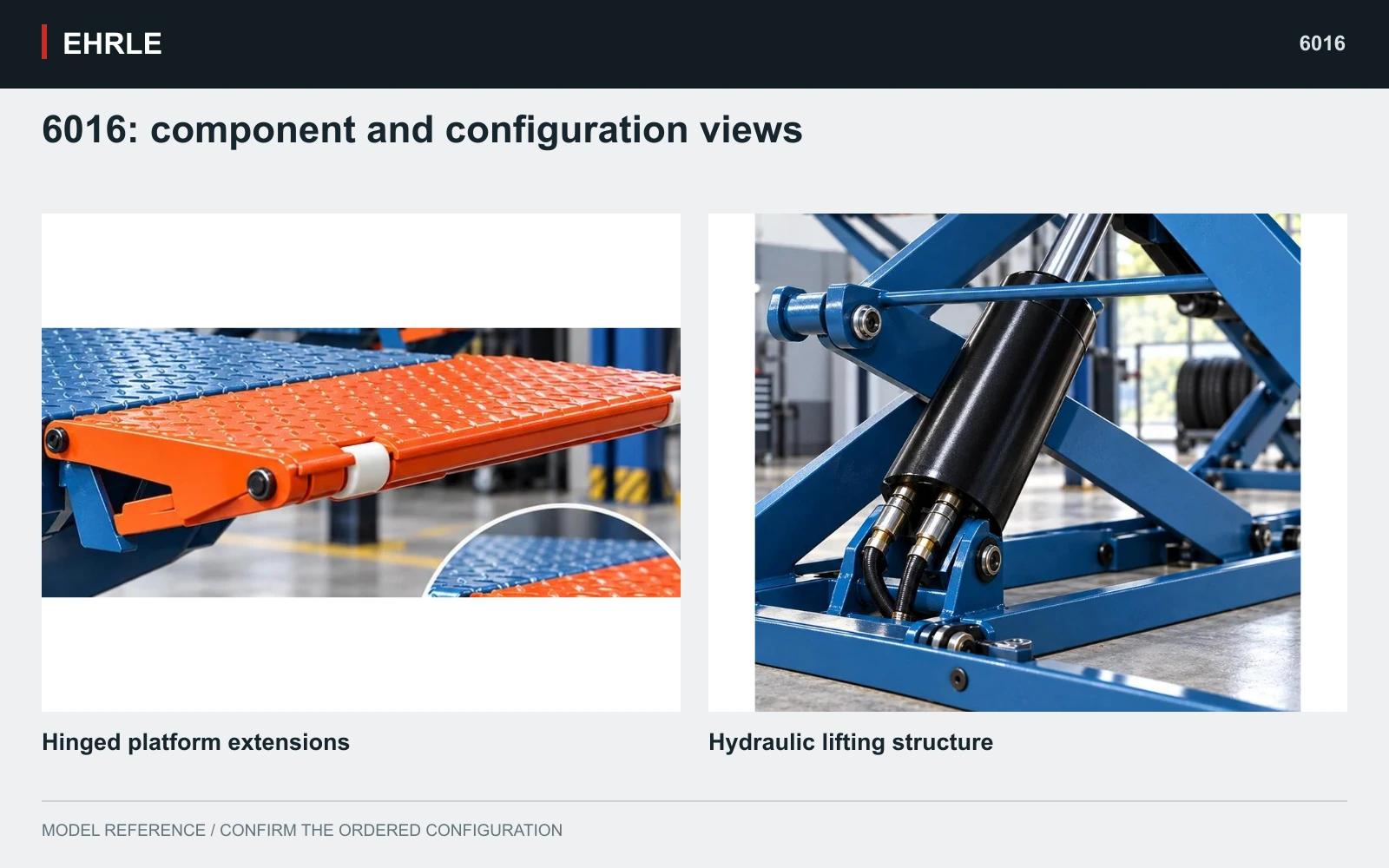

6016: component and configuration views
Hinged platform extensions; hydraulic lifting structure. Confirm supplied parts and options for the selected configuration.

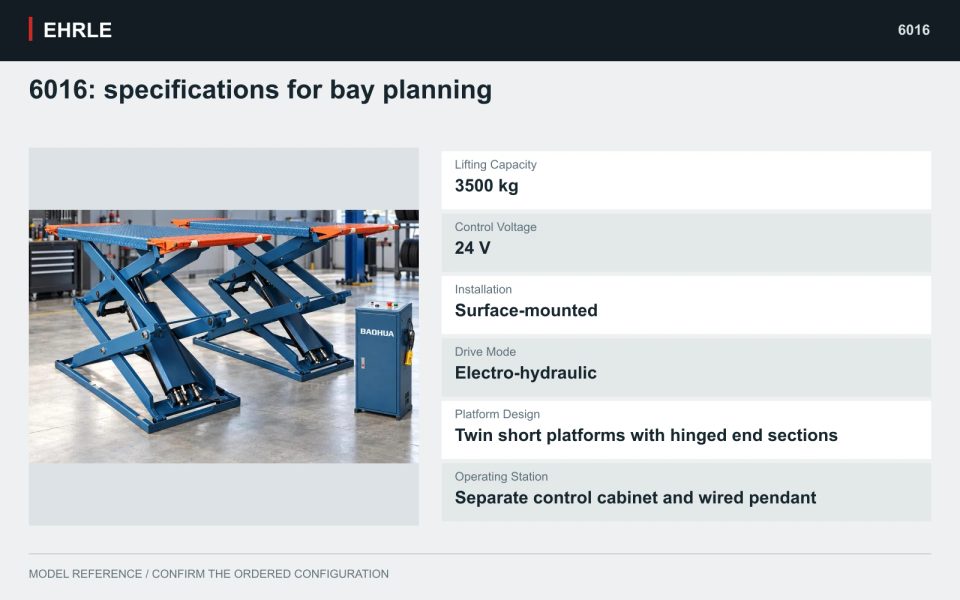

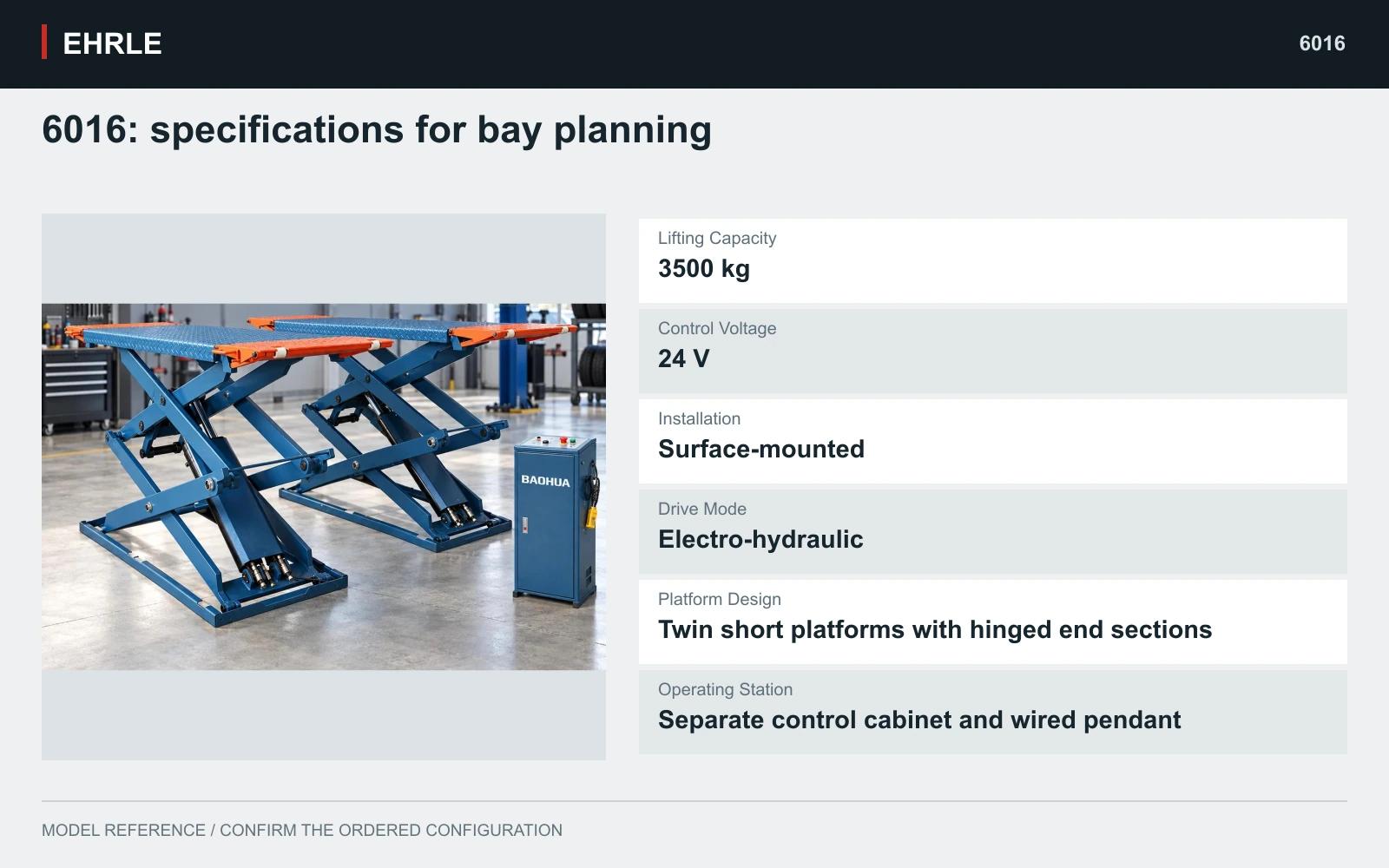

6016: specifications for bay planning
Lifting Capacity: 3500 kg; Control Voltage: 24 V; Installation: Surface-mounted; Drive Mode: Electro-hydraulic; Platform Design: Twin short platforms with hinged end sections; Operating Station: Separate control cabinet and wired pendant.
TECHNICAL DATA
6016 specifications
Compare the stated dimensions and ratings with your vehicle range, available space and site power supply. Supply options refer to the configuration selected when ordering.
| Model | 6016 |
|---|---|
| Lift Type | Full-rise double-scissor lift |
| Lifting Capacity | 3500 kg |
| Platform Design | Twin short platforms with hinged end sections |
| Power Supply | 220 V / 380 V options; confirm phase and frequency |
| Control Voltage | 24 V |
| Installation | Surface-mounted |
| Drive Mode | Electro-hydraulic |
| Operating Station | Separate control cabinet and wired pendant |
SPECIFY YOUR LIFT
Configuration and installation planning
- Listed configuration: 3,500 kg surface-mounted full-rise double-scissor lift with hinged platform ends, separate cabinet, wired pendant and 24 V controls.
- Power choices are 220 V or 380 V; specify phase and frequency with the requested configuration.
- Obtain maximum and minimum lifting heights, platform dimensions, motor power and the pad/adapter package for the selected 6016. No universal figures are supplied for these items in the current table.
- Use the 6016 surface-mount installation drawing for the concrete floor, anchoring and hose routing; do not substitute a 6105B recessed-pit drawing.
For available documents, see Certificates. Check the holder, product model and document scope for the selected equipment.
Discuss this configuration →MODEL QUESTIONS
Questions about 6016
What installation difference separates 6016 from 6105B?
The 6016 is surface-mounted, while the 6105B uses a recessed in-ground installation with prepared floor pits. Both are listed as 3,500 kg full-rise double-scissor lifts. The 6016 uses hinged platform ends; the 6105B lists single-side extension as standard and double-side extension as optional.
Can the 6016 be used as a wheel-alignment runway lift?
The 6016 uses short platforms to support approved vehicle lifting points for wheel-free service. It is not listed as a long-runway alignment lift with turnplates. For an alignment bay, compare a dedicated runway model such as the 6018C and its compatibility with the alignment equipment.
What is the exact full-rise height of the 6016?
The source identifies the 6016 as full-rise but does not provide a verified numerical maximum or minimum height in its current specification table. Those dimensions, along with platform size and motor power, should be taken from the selected configuration drawing rather than copied from another scissor lift.
How much space is needed for the 6016 controls?
The lift has a separate control cabinet and a wired pendant, so the bay plan must include their position, access and service routing. The source does not specify cabinet dimensions or pendant cable length. Obtain those details with the equipment layout before fixing the operating station location.
