Motorcycle-specific platform
The working surface measures 2,232 × 750 mm, with a front wheel chock and loading ramp. Use the approved restraint procedure for the motorcycle and maintenance task.
Select a view below. Click the main image to open it full size.Product images illustrate the model and may use a composed workshop background. Confirm the supplied configuration, finish and accessories in your quotation.
EHRLE / VEHICLE LIFTS
EHRLE BH-900 900 kg Motorcycle Lift
A motorcycle service table with a 2,232 × 750 mm working platform, front wheel chock and loading ramp. The stated lifting range is 190–1,200 mm.
- Rated capacity
- 900 kg
- Lifting height
- 1,200 mm
- Platform length
- 2,232 mm
Request the model drawing, electrical configuration, packing details and applicable documents with your quotation.
View all specifications ↓DESIGNED FOR THE TASK
BH-900 equipment overview
The BH-900 raises a motorcycle on a steel platform so the workshop can plan inspection and routine service at an elevated working position. The motorcycle configuration is rated at 900 kg and uses a 2.2 kW motor. Its working platform is 2,232 mm long and 750 mm wide, with a front wheel chock and a loading ramp in the documented arrangement.
Motorcycle fit depends on wheelbase, tire positions, weight and the securing procedure as well as platform size. The listed overall platform dimensions are 2,914 × 890 mm, larger than the working surface. Keep these measurements separate when allocating floor space. The BH-900 described here is distinct from the widened 1,300 kg tricycle version and should be selected on its own specifications.
Defined working height range
The model specification lists 190 mm minimum height and 1,200 mm lifting height. The specified lifting time is 30 seconds.
Hydraulic drive with supply choice
The lift uses a 2.2 kW motor and is offered with 220 V or 380 V supply configurations. Equipment weight is listed as 248 kg.
Motorcycle repair and dealer service
Consider the BH-900 for inspection and routine maintenance of motorcycles within the 900 kg rating whose wheel positions and securing arrangement fit the platform.
A dedicated motorcycle work position
The narrow platform is the documented motorcycle configuration. Do not assume the same table supports an ATV or tricycle; those vehicles need an approved platform and restraint arrangement.
A CLOSER LOOK
Equipment and configuration details

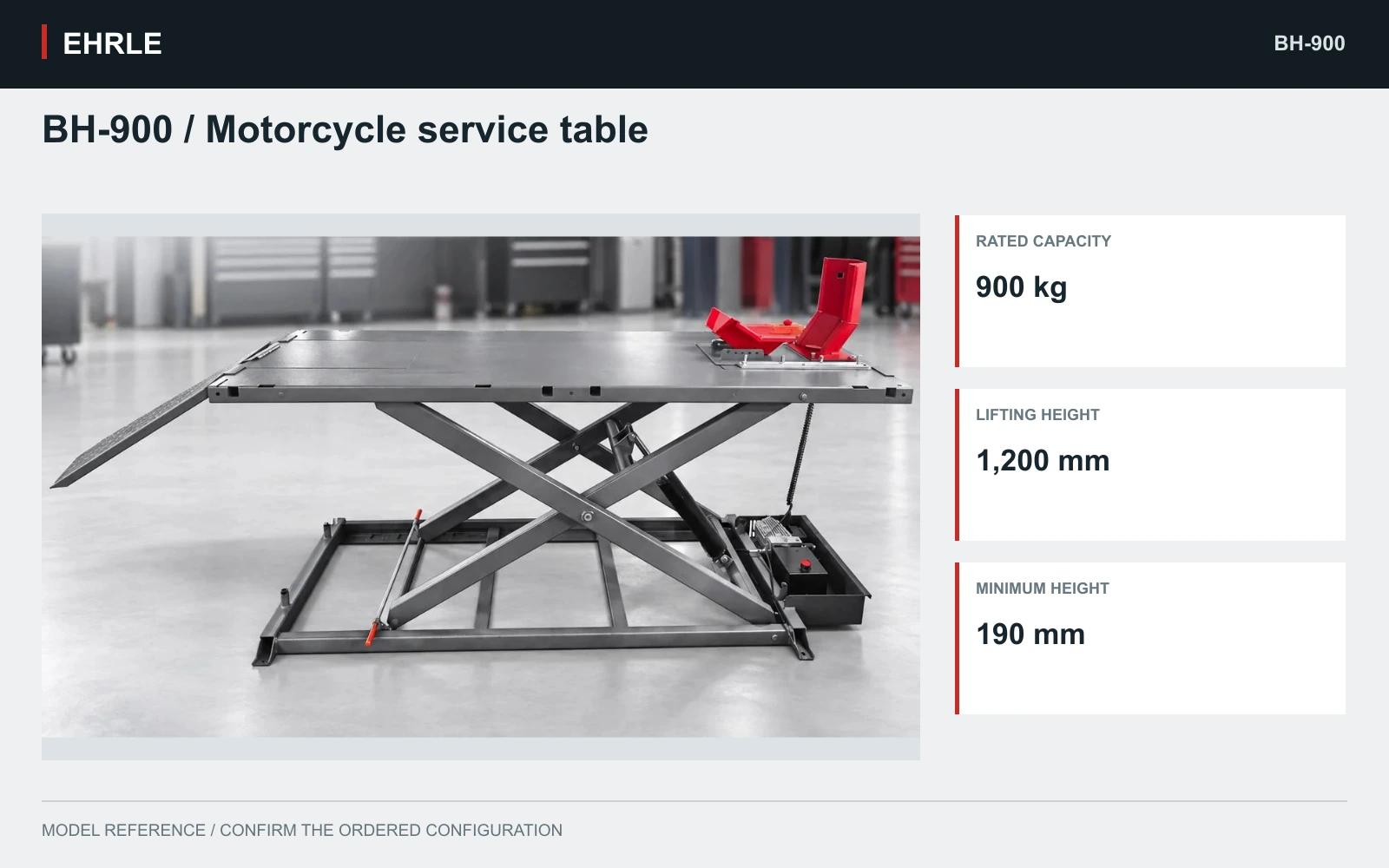

BH-900 / Motorcycle service table
900 kg motorcycle configuration with a hydraulic scissor structure.

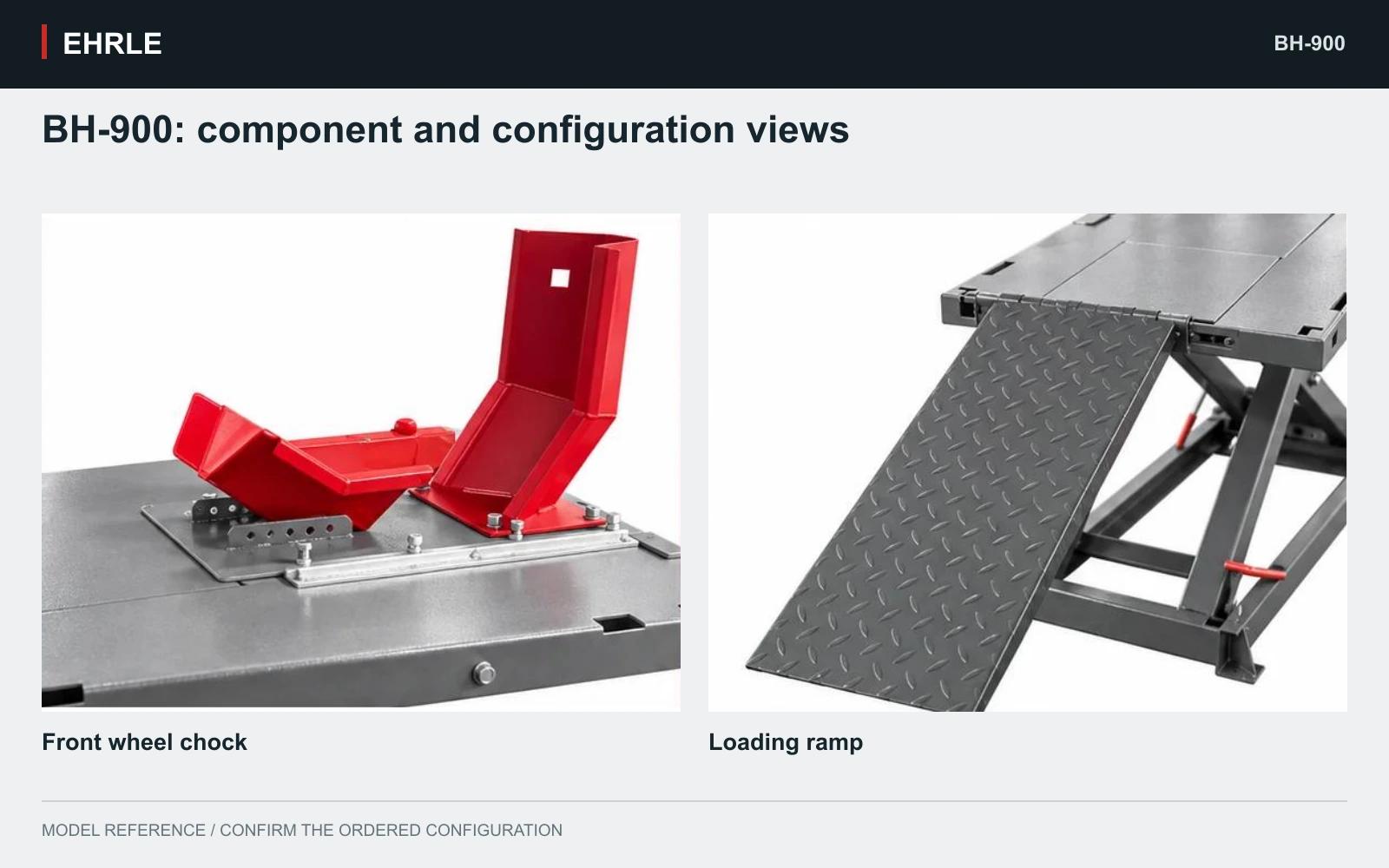

BH-900: component and configuration views
Front wheel chock; loading ramp. Confirm supplied parts and options for the selected configuration.

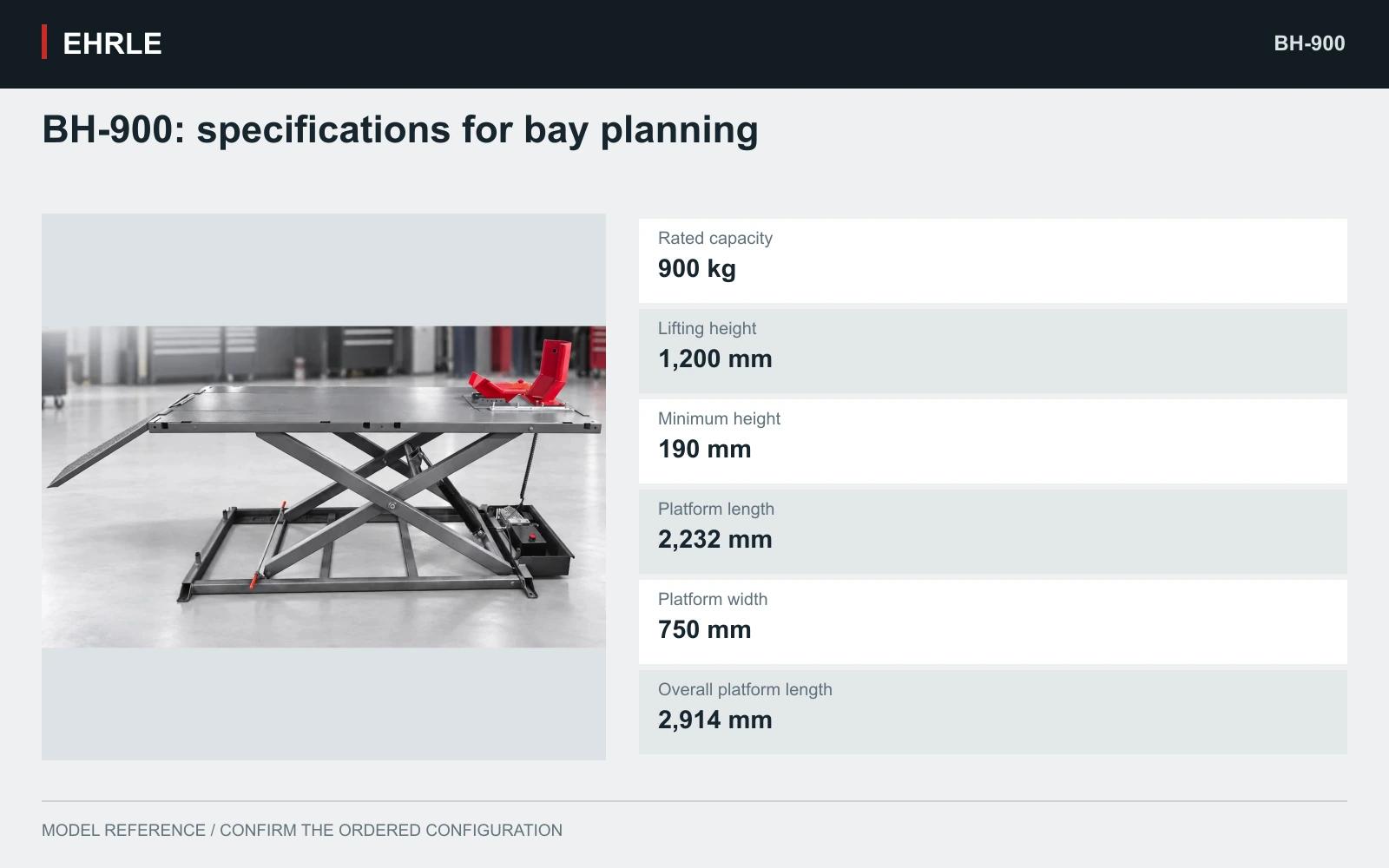

BH-900: specifications for bay planning
Rated capacity: 900 kg; Lifting height: 1,200 mm; Minimum height: 190 mm; Platform length: 2,232 mm; Platform width: 750 mm; Overall platform length: 2,914 mm.
TECHNICAL DATA
BH-900 specifications
Compare the stated dimensions and ratings with your vehicle range, available space and site power supply. Supply options refer to the configuration selected when ordering.
| Model | BH-900 |
|---|---|
| Rated capacity | 900 kg |
| Lifting height | 1,200 mm |
| Minimum height | 190 mm |
| Lifting time | 30 s |
| Platform length | 2,232 mm |
| Platform width | 750 mm |
| Overall platform length | 2,914 mm |
| Overall platform width | 890 mm |
| Motor power | 2.2 kW |
| Power supply | 220 V or 380 V, selectable when ordering |
| Equipment weight | 248 kg |
SPECIFY YOUR LIFT
Configuration and installation planning
- Listed version: 900 kg motorcycle table with front wheel chock and loading ramp.
- Supply choice: 220 V or 380 V; phase and frequency must match the ordered 2.2 kW drive.
- Motorcycle securing equipment and procedures must be suitable for the actual service task; the wheel chock alone is not a universal restraint.
- Widened 1,300 kg tricycle equipment is a separate version and is not included in this product specification.
For available documents, see Certificates. Check the holder, product model and document scope for the selected equipment.
Discuss this configuration →MODEL QUESTIONS
Questions about BH-900
Which BH-900 width should I use when planning the bay?
The working platform is 750 mm wide. The listed overall platform width is 890 mm, with 2,914 mm overall platform length. Allow operator and vehicle-loading space beyond those equipment dimensions.
Does the BH-900 wheel chock secure every motorcycle by itself?
The front wheel chock is part of the platform arrangement. The motorcycle must still use the restraint method specified in the operating instructions for its dimensions, balance and intended maintenance work.
Is this the BH-900 configuration for tricycles or ATVs?
This specification covers the narrow 900 kg motorcycle table. A widened 1,300 kg tricycle version is a different product. ATV or tricycle use needs a separately approved platform and support arrangement.
What loading and working heights are listed for the BH-900?
The minimum height is 190 mm and the lifting height is 1,200 mm. Compare the motorcycle's clearance and loading approach with the ramp arrangement, then select a working position according to the equipment instructions.
COMPARE YOUR OPTIONS
Related lift models

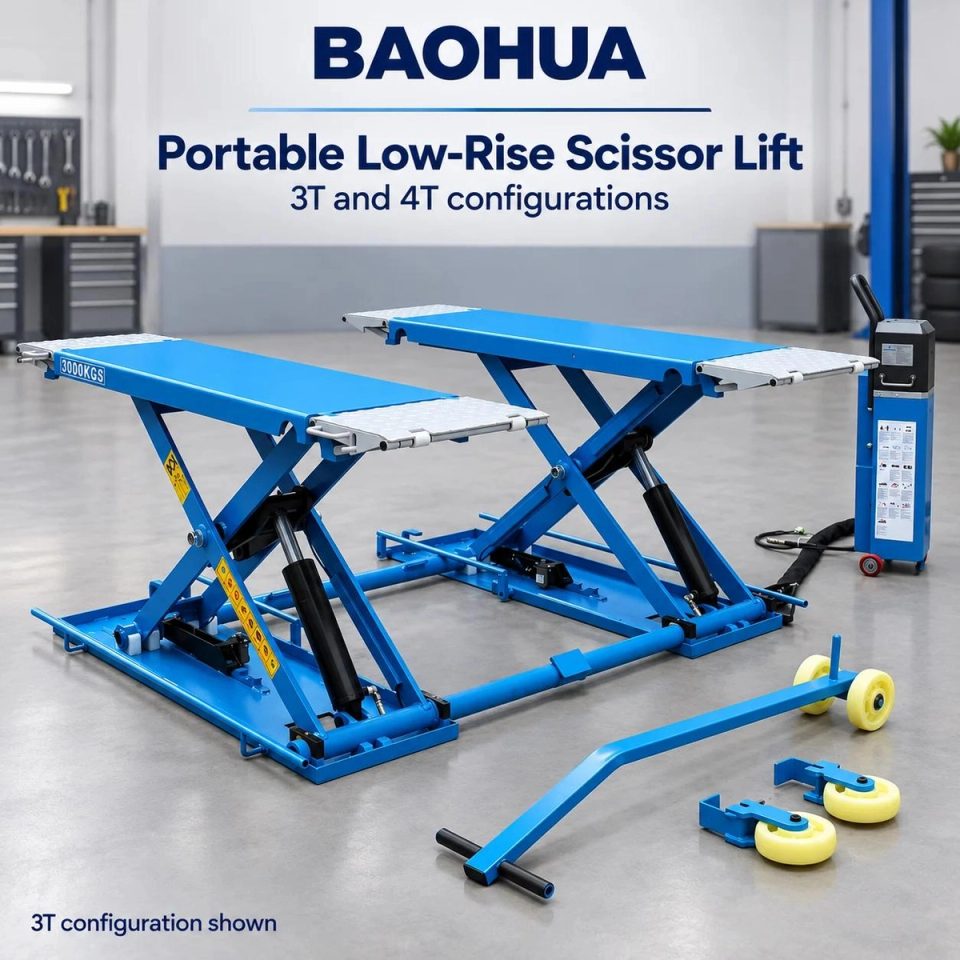

6010B / 6010C Portable Scissor Lifts
